48-575

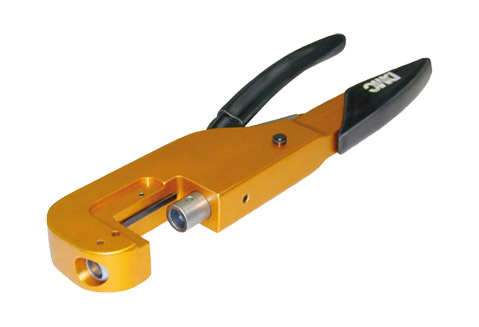

NEUTRIK HX-BNC CRIMP TOOL (without die-set)

Neutrik HX-BNC

NEUTRIK HX-BNC CRIMP TOOL (without die-set)

NEUTRIK BNC CONNECTORS - Tools - Rear Twist, Push-Pull - 3G HD-SDI

A range of crimp tools, die sets and a spanner, required to assemble Neutrik Rear Twist and Push-Pull series BNC connectors.

Crimp tool HX-BNC

A high quality hand crimp-tool offering the professional, high volume user, a ‘tool for life’ with easy action and interchangeable die sets. A parallel die motion and ratchet action ensures accurate and complete closure of the dies, ensuring a perfect crimp termination.

Crimp tool HX-R-BNC

For less frequent use, the HX-R-BNC ‘plier’ type tool achieves the same high quality crimp termination at a more economical price. It also has a parallel die motion and ratchet action to ensure accurate and complete closure of the dies and a perfect crimp termination.

Crimp die-sets

Crimp dies are supplied as a pair and must be ordered in addition to the crimp tool. HX-BNC and HX-R-BNC die-sets are of different designs and are not interchangeable between the two tool styles.

All die-sets have a 1.6mm pin crimping cavity (except size Z which is 1.75). Die-sets also have one or more larger cavities for crimping the connector ferrules, making some sets suitable for more than one connector size. Cavities sizes are indicated by the letters at the end of the description.

Crimp tools and die-sets are available for hire - see the Hires section (UK only).

Note: The Neutrik letter code indicating screen crimp die sizes do not relate to the Canford cable group. See Coaxial connector selection guidance for Canford cable groups.
Crimp die Centre pin crimp Centre pin crimp style Hex crimp cavity 1 Hex crimp cavity 2 Hex crimp cavity 3
DIE-BNC-CS 1.6mm Square 4.06mm 7.01mm -
DIE-BNC-JD 1.6mm Square 5.41mm 4.53mm -
DIE-BNC-PG 1.6mm Square 6.47mm 5.00mm -
DIE-BNC-U 1.6mm Square 7.36mm - -
DIE-BNC-UG 1.6mm Square 7.36mm 5.00mm -
DIE-BNC-CS 1.6mm Square 8.23mm - -
DIE-R-BNC-PDC 1.6mm Square 6.47mm 4.53mm 4.06mm
DIE-R-BNC-PG 1.6mm Square 6.47mm 5.00mm -
DIE-R-BNC-PJ 1.6mm Square 6.47mm 5.41mm -
DIE-R-BNC-PS 1.6mm Square 6.47mm 7.01mm -
DIE-R-BNC-PU 1.6mm Square 6.47mm 7.36mm -
DIE-R-BNC-PY 1.6mm Square 6.47mm 8.23mm -
DIE-R-BNC-UG 1.6mm Square 7.36mm 5.00mm -
DIE-R-BNC-Z 1.75mm Hex 9.73mm - -
  Description Price (£) Add to basket
NEUTRIK HX-BNC CRIMP TOOL (without die-set) 48-575  NEUTRIK HX-BNC CRIMP TOOL (without die-set)

Special order product. Order cancellations may incur charges.

£344.40
NEUTRIK HX-R-BNC CRIMP TOOL (without die-set)
£74.17
NEUTRIK DIE-BNC-CS DIE SET For HX-BNC crimp tool

Special order product. Order cancellations may incur charges.

£80.09
NEUTRIK DIE-BNC-JD DIE SET For HX-BNC crimp tool

Special order product. Order cancellations may incur charges.

£80.09
NEUTRIK DIE-BNC-PG DIE SET For HX-BNC crimp tool

Special order product. Order cancellations may incur charges.

£80.09
NEUTRIK DIE-BNC-UG DIE SET For HX-BNC crimp tool

Special order product. Order cancellations may incur charges.

£80.09
NEUTRIK DIE-BNC-U DIE SET For HX-BNC crimp tool

Special order product. Order cancellations may incur charges.

£80.09
NEUTRIK DIE-BNC-Y DIE SET For HX-BNC crimp tool

Special order product. Order cancellations may incur charges.

£80.09
NEUTRIK DIE-R-BNC-PDC DIE SET For HX-R-BNC crimp tool
£80.09
NEUTRIK DIE-R-BNC-PG DIE SET For HX-R-BNC crimp tool
£80.09
NEUTRIK DIE-R-BNC-PJ DIE SET For HX-R-BNC crimp tool

Special order product. Order cancellations may incur charges.

£80.09
NEUTRIK DIE-R-BNC-PS DIE SET For HX-R-BNC crimp tool
£80.09
NEUTRIK DIE-R-BNC-PU DIE SET For HX-R-BNC crimp tool
£80.09
NEUTRIK DIE-R-BNC-PY DIE SET For HX-R-BNC crimp tool
£80.09
NEUTRIK DIE-R-BNC-UG DIE SET For HX-R-BNC crimp tool
£80.09
NEUTRIK DIE-R-BNC-Z DIE SET For HX-R-BNC crimp tool
£80.09
