48-795 NEUTRIK BNC NBB75FG Female panel, double-sided

each (ex. VAT) 1+ 10+ 50+ 100+
Price £ 5.02 4.54 4.23 3.73

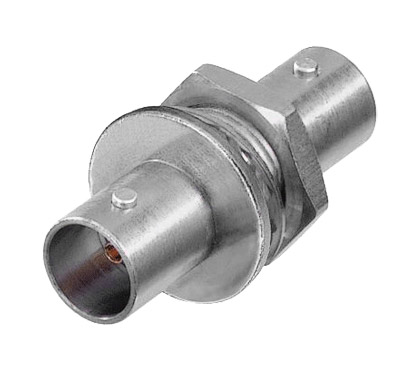

NEUTRIK BNC NBB75FG Female panel, double-sided

Description

NEUTRIK BNC CONNECTORS: FEMALE BACK-TO-BACK, PANEL MOUNT - HDTV

A range of high quality BNC connectors, giving excellent mechanical, electrical and assembly performance. Precision machined components give accurate impedance and excellent return-loss, even at high frequencies above 1GHz.

A range of high-quality robust machined BNC connectors for bulkhead or panel mounting. All models have a gold-plated centre contact and are rated for more than 1000 operations.

A range of versions are available, including “Universal” connector mounting and black finish, either isolated or grounded. The universal mounting versions are recessed and are suitable for use with Canford connection panels and plates (see index).

ConnectorMounting isolated/groundedFinish
NBB75DFGUniversal seriesGroundedNickel
NBB75DFGBUniversal seriesGroundedBlack
NBB75DFIUniversal seriesIsolatedNickel
NBB75DFIBUniversal seriesIsolatedBlack
NBB75FGFeed throughGroundedNickel
NBB75FIFeed throughIsolatedNickel
