Description
LIGHTWAND GOOSENECK CONSOLE LIGHTS
The Lightwand console lights use an array of twelve high-intensity LEDs in a 380mm length ‘wand’ housing to provide clear, even and diffuse white light to mixing and control consoles. The lamp array is mounted on the end of a gooseneck stem, which provides the ability to precisely direct the illumination.

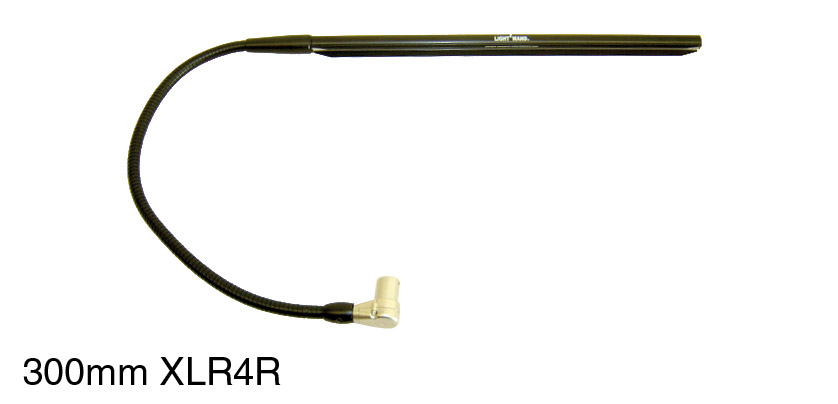

The gooseneck is available in three lengths (150mm, 300mm and 450mm), and the DC connection is either three or four-pin XLR male (XLR3 or XLR4 in description lines), straight or right-angled (suffix S and R, respectively). The lamp circuitry detects the pin polarity wiring and configures the circuitry accordingly. Powering is 12V DC, current consumption 180mA approx.
A special version, the 'Trackfinder', is available with a 300mm gooseneck and metal base, which clips onto a supplied bracket that is fixed to the console or mixer. An on/off switch is incorporated in the base. This unit is fitted with a BNC connector, and supplied complete with mains adapter.
