Q-MAX PUNCH 22.5mm

Stock code
55-692
Brand
Q-Max
Q-MAX PUNCH 22.5mm

Image may be provided for illustrative purposes only, please refer to the product description.

Q-MAX PUNCH 22.5mmQ-MAX PUNCH 22.5mm

Order

VAT / Delivery
Discontinued. Unfortunately we are not currently able to offer an alternative.
RoHS Exempt

Find similar

Q-MAX SHEET METAL PUNCHES

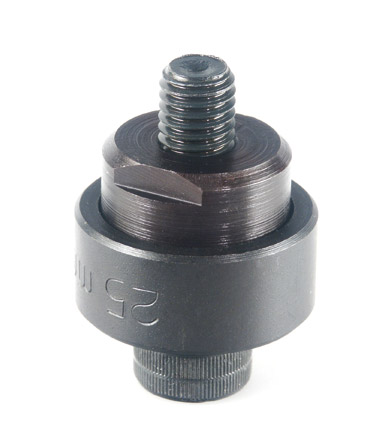

Allows the punching of holes in sheet materials, with only minimal tools. A small pilot hole is drilled allowing a connecting bolt to join the punch on one side and the die on the other side of the sheet material. Pressure is then applied by tightening the bolt using a hex key and the hole is punched out. Neither the punch or the die rotates during the process.

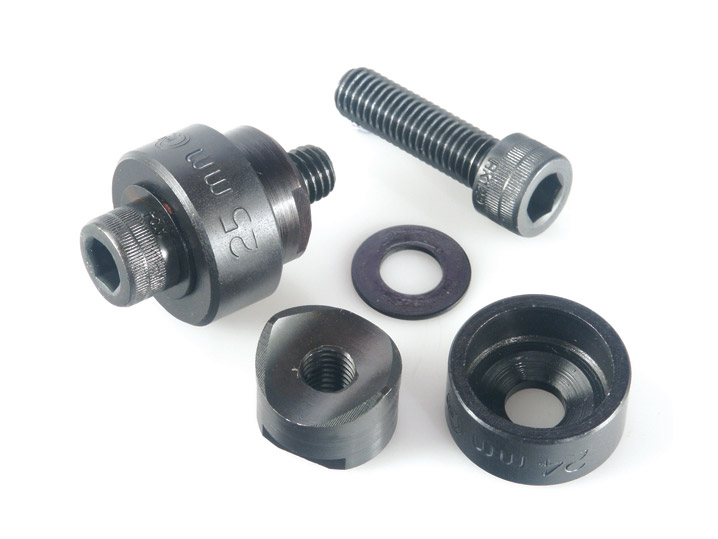

Stocked in five sizes, supplied complete with hex head bolt, die, receptacle, washer and nut.

Stock code Diameter Hex Key Suitable for
55-691 20mm 8mm Neutrik NC-MP type
55-692 22.5mm 8mm Neutrik A and B series
55-693 24mm 8mm Neutrik D, DL, DS, I, K, PP and PR series,
Neutrik NL4MP and NAC3MP;
Canford ‘Universal’ series
55-694 25mm 8mm Neutrik FP type
55-695 55mm 14mm Cue light lamp fitting (51-300)

Application note: For use with mild and stainless steel up to 16 SWG (1.62mm); copper, brass and aluminium up to 2mm; other sheet materials and ductile plastics.

Ordering note: Order hex keys separately as required. Pilot hole drills not included.
