36-264 CANARE LV-61S CABLE Yellow

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.12 0.90 0.87 0.85 0.82
Special order product. Order cancellations may incur charges
CANARE LV-61S CABLE Yellow

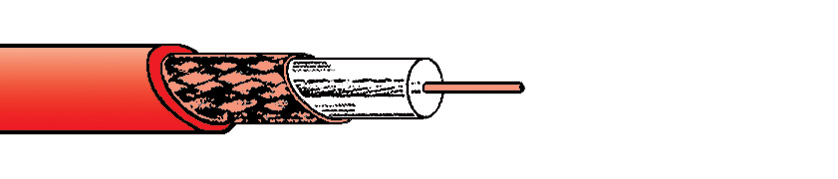

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

CANARE LV-61S VIDEO COAX CABLE

A lightweight, very flexible 75 ohm RG59B/U equivalent, for analogue video applications. Semi-matt non-reflective PVC jacket stays flexible even at low temperatures. Suitable for most general purpose applications, especially suitable for patchcords. Blue jacket is designed to work with chroma-key. The full range of colours is available to special order, allow 4 weeks for special orders. All other Canare video cables can be supplied to special order.

Technical Specification:

Cable size group:Q
Centre wire:7/0.2mm plain copper
Dielectric:Polyethylene, 3.6mm OD
Braid:Plain copper, 94% coverage
Jacket:Soft PVC 6.1mm OD, various colours
Nominal impedance:75 ohms
Capacitance (nom.):67pf/m
Velocity ratio (nom.):0.66
DC resistance:85 ohms/km maximum
Attenuation:Mhz10MHz50MHz100MHz200MHz
db/100m ±0.1dB:4.29.013.318.8
Weight:5.6kg/100m
Reel length:153 metres (500 feet)
Cut lengths:Available in any multiple of 1 metre (stock types only)
