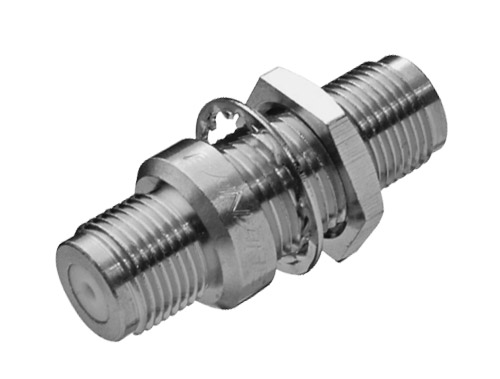

48-870 CANARE FJ-JR Female panel, double-sided

each (ex. VAT) 1+ 10+ 50+ 100+ 500+
Price £ 5.77 5.56 5.35 5.13 4.97
CANARE FJ-JR Female panel, double-sided

Description

CANARE F CONNECTORS, FEMALE BACK-TO-BACK, PANEL MOUNT

Canare F connectors are true 75 ohm types, with impedance-matched performance characteristics, suitable for both analogue and serial digital video (SDI). They pass DC to 2GHz, with 26dB return loss or better (1.1 VSWR approximately).

Available for single-hole fixing (double “D” profile, diameter 11.2mm with two flats on opposite sides 9.6mm apart), in F-F (“back-to-back”) format. They are uninsulated from the panel, but coloured pairs of plastic isolating washers are also available. Panel hole diameter for washers is 12.8mm with two flats on opposite sides 11.2mm apart.
