Description
CANFORD 19 INCH WOODEN RACKS
To compliment the current range of 19" rack cabinets Canford has developed an aesthetically pleasing wooden version without compromising on durability and price.

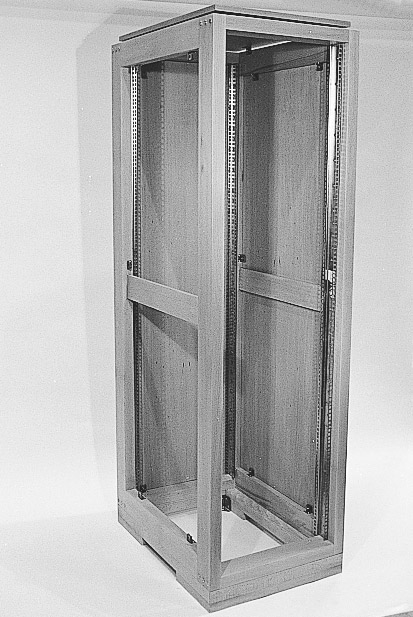

This high quality hardwood rack, constructed with solid European beech or American ash framework and matching rear and side panels, is a must for every recording studio. The package also come complete with matching raised roof to assist with ventilation.
The rear panel, which is manufactured from 18mm veneered particle board, has four integral ventilation grilles and is mounted via six quick-release stud fasteners. The side panels are also manufactured from 18mm veneered particle board and utilise six quick-release stud fasteners which makes access to the rack obtainable with “loose change”.
Units are supplied flat-packed and require minimal time and effort to erect. The end frames are pre-drilled to accept a matching door, currently under development, supplied ready assembled and are attached to each other by means of four horizontal cross members. Three M6 bolts are inserted through each corner of the end frames which locate into corresponding threaded sockets within the cross members. Simply add the raised roof, rear and side panels for a piece of studio furniture that Mr. Chippendale himself would be envious of. A further option for the above is a matching hardwood raised plinth.
Manufactured for Canford Audio.
Technical Specification:
| |
| Overall Height: | 1940mm (41U) including raised roof |
| Overall Width: | 600mm |
| Overall Depth: | 840mm |
| Max. usable depth: | 755mm |
| Weight: | 110kg |
| Raised plinth height: | 75mm |
| Suitable cage nuts: | Type 16-026 |
