30-170 CANFORD HST-R-M CABLE 1 pair

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.49 1.19 1.14 1.10 1.01
CANFORD HST-R-M CABLE 1 pair

Description

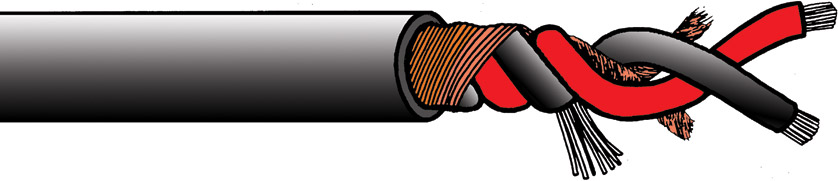

HST-R-M - MINIATURE HELICAL SCREENED STRANDED CONDUCTOR TWIN CABLE Rubber equivalent jacket

Designed for specialised applications requiring either an extra flexible mic cable or one of reduced overall size. The cable uses the standard HST core and screen construction, but then has a matt black polyurethane (PUR) jacket of only 0.8mm radial thickness, giving an overall cable diameter of 4.6mm. This jacket thickness would be impractical with PVC, but due to the very tough wearing properties of PUR, becomes possible. However, the thinner jacket does not give the mechanical protection to the core, so it would not be suitable for on-stage use etc.

Technical Specification:

As HST except:-
Overall jacket:Polyurethane, OD 4.6mm (±0.2mm), matt black
Weight:2.8 kg/100m
Reel lengths:100m and 500m
Cut lengths:Available in any multiple of 1 metre
