30-220 CANFORD HSS CABLE 1 core, screened, Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 0.84 0.67 0.65 0.62 0.57

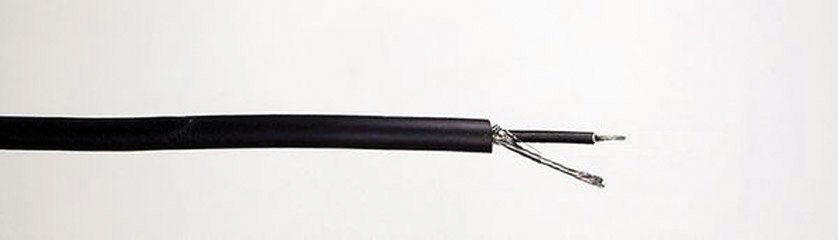

CANFORD HSS CABLE 1 core, screened, Black

Image may be provided for illustrative purposes only, please consult the product description for exact details.

CANFORD HSS CABLE 1 core, screened, BlackCANFORD HSS CABLE 1 core, screened, Black

Description

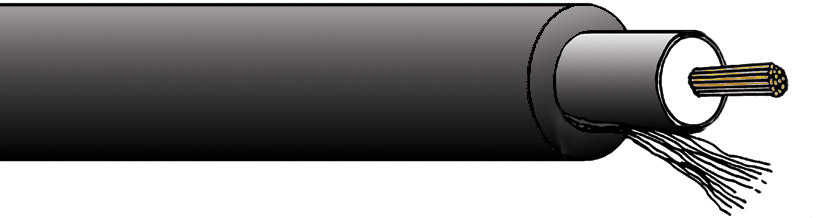

HSS - HELICAL DOUBLE-SCREENED SINGLE CABLE

Single core “noiseless” extra flexible screened cable with both conductive plastic and helical screens, plus conductive plastic coating on inner core for ultra-low microphony. Suitable for unbalanced signal connections in conjuction with Neutrik phono connectors NF2C series, Canford Superphono series, and all 6.35mm jack plugs. Also useful as the ultimate “noiseless” guitar cable!

Technical Specification:

Conductor:7/0.2mm (0.22mm²) tinned copper wire
Coating:Semi-conductive layer, with polyethylene skin
Insulation:Foamed polyethylene
Coating:Semi-conductive layer
Screen:52/0.12mm helically wound, tinned copper wire
Overall jacket:Soft semi-matt PVC, OD 6.2mm, ±0.2mm
Max. conductor
resistance:9.0 ohms/100m
Max. screen resistance:3.5 ohms/100m
Capacitance:140pF/m core to screen
Weight:5.4kg/100m
Reel length:100m and 500m
Cut lengths:Available in any multiple of 1 metre
