Description

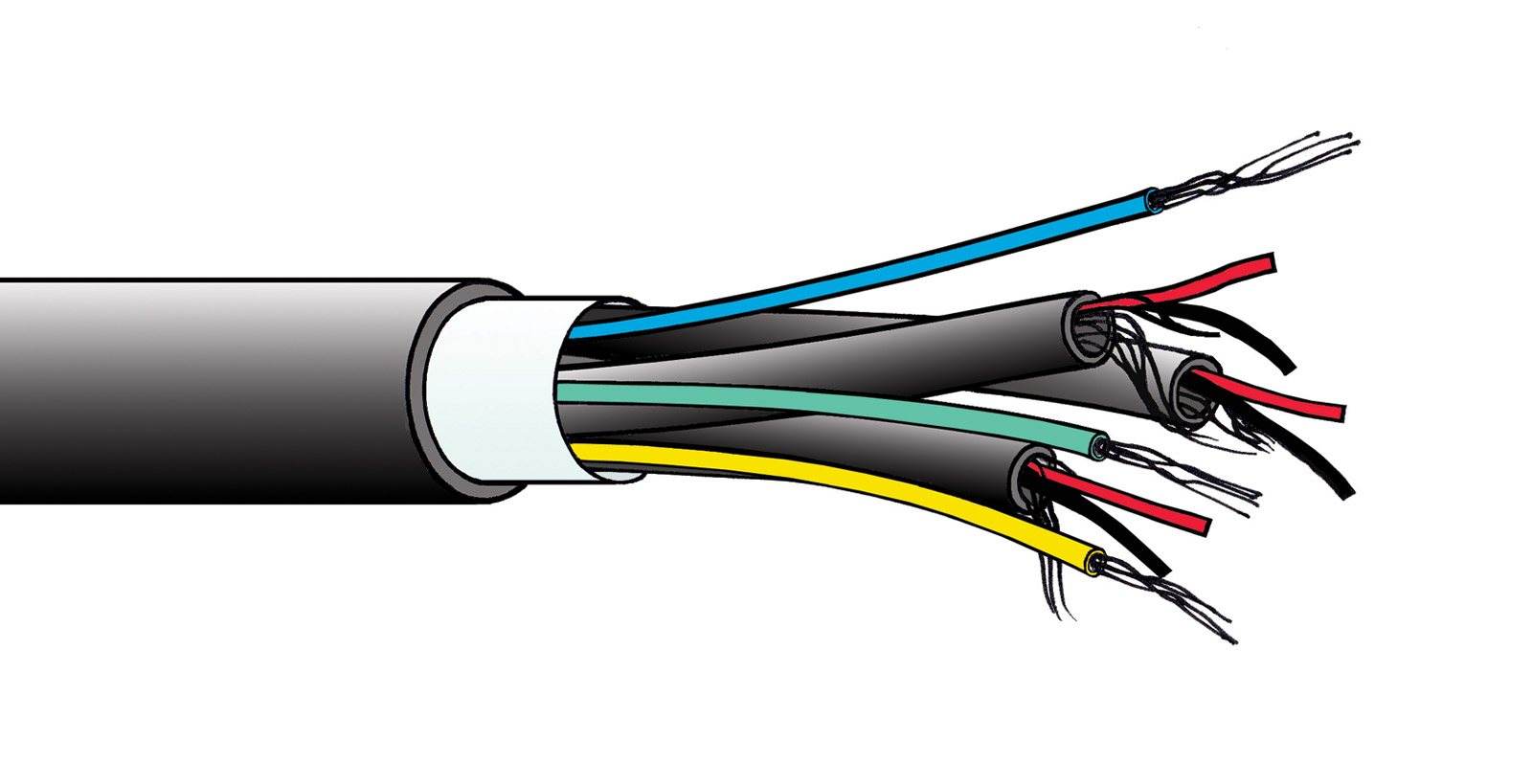

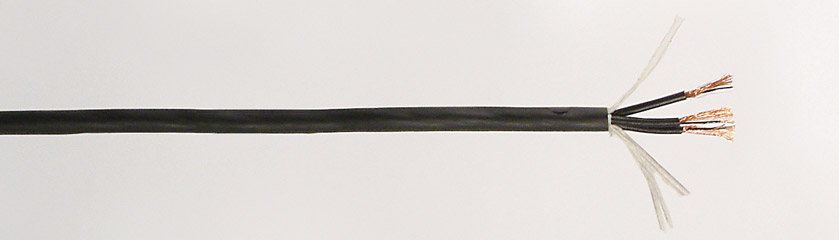

MSJ SERIES - MINIATURE BRAID SCREENED STRANDED CONDUCTOR INDIVIDUALLY JACKETED MULTIPAIR CABLE
A small diameter multipair cable based on Canford’s HSJ series flexible individually jacketed multipair cable. The design is similar but uses smaller conductors and thinner insulation in order to obtain a reduced diameter offering good handling characteristics. MSJ3 is specifically intended for use with M-S and other stereo microphones, but is suitable for a range of other applications requiring a reduced diameter, flexible screened 3-pair cable, including ENG.
To give further usage options, there are 3 additional single wires, which can be used for DC, signalling, control etc., plus an overall foil screen under the outer jacket to provide further screening.
Technical Specification:
|
Conductors: | 7/0.127mm (0.088mm²) plain copper wire |
|
Insulation: | PVC, OD 1.0mm, red, black |
|
Screen: | 0.1mm plain copper wire, helically wound, 80% optical coverage |
|
Pair jacket: | Soft PVC, OD 2.8mm, yellow |
|
Conductors: | 3 individual wires, 7/0.2mm tinned copper wire, PVC insulated |
|
Overall screen: | Aluminium/polyester tape |
|
Outer sheath: | Soft PVC, OD 7.0mm ±0.1mm, matt black |
|
Conductor resistance: | 23 ohms/100m |
|
Capacitance: | 120pF/100m |
|
Weight: | 5.0kg/100m approx |
|
Reel length: | 500 metres |
|
Cut lengths: | Available in any multiple of 1 metre |
