31-008 CANFORD FSM CABLE 8 pair

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 2.78 2.22 2.17 2.11 2.03

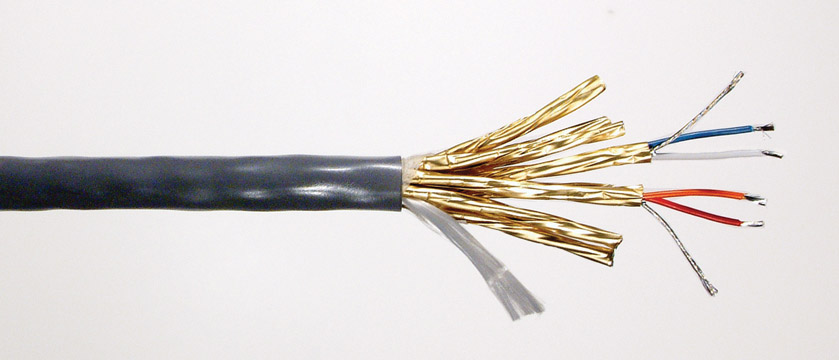

CANFORD FSM CABLE 8 pair

Image may be provided for illustrative purposes only, please consult the product description for exact details.

CANFORD FSM CABLE 8 pairCANFORD FSM CABLE 8 pair

Description

Product resources

FSM SERIES - FOIL SCREENED STRANDED CONDUCTOR MULTIPAIR CABLE

This new 2010 version of the classic Canford FSM series of cables is designed to be suitable for both digital and analogue audio signals, the 'universal' solution for both installed and deployable applications. Wire insulation is polypropylene, which shrinks back minimally during soldering (considerably less than PVC or polyethylene). An impedance of 100 ohms has been proven to be suitable for AES/EBU digital audio signals as well as analogue microphone and line level signals.

Technical Specification:

Conductors:30/0.1mm tinned copper wire
Insulation:Foamed polypropylene, 1.50mm overall diamater, according to IEC colour code
Lay-up:Two insulated conductors twisted together, laid up with 30/0.1mm tinned copper drain wire, overall aluminium/polyester "S-profile" foil tape screen
Overall jacket:Soft PVC, black, printed with metre markings
Impedance:100 ohms (+/- 10 ohms)
Pair capacitance:41pF/m core to core, 102pF/m core + core to screen
Overall diameter:FSM2 7.1mm, FSM4 9.0mm, FSM8 11.0mm, FSM12 14.1mm, FSM16 17.3mm, FSM24 19.6mm, FSM32 21.0mm
Weight (kg/100 metres):FSM2 4.3kg, FSM4 6.8kg, FSM8 11.4kg, FSM12 16.5kg, FSM16 22.3kg, FSM24 32.7kg, FSM32 40.4kg
Reel lengths:500 metres
Cut lengths:Available in any multiple of 1 metre
