Description

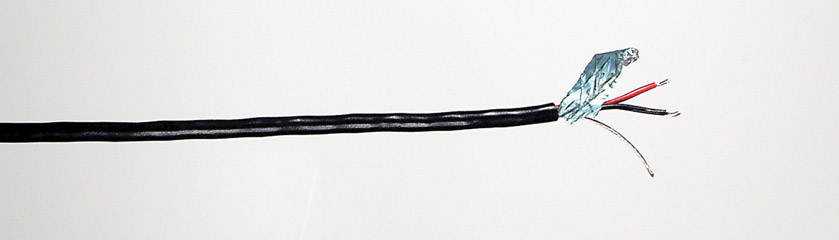

FST-HD - FOIL SCREENED STRANDED CONDUCTOR TWIN CABLE Heavy duty
This new 2010 version of the Canford FST-HD cable is designed to be suitable for both digital and analogue audio signals, the 'universal' solution for both installed and deployable applications. Wire insulation is polypropylene, which shrinks back minimally during soldering (considerably less than PVC or polyethylene). An impedance of 100 ohms has been proven to be suitable for AES/EBU digital audio signals as well as analogue microphone and line level signals.
This cable is constructed in exactly the same easy-strip style as FST, but has 0.5mm² conductors for applications where lower losses are required, or where DC currents may be carried over extended distances. It is particularly recommended for use with Tecpro intercom installations.
Technical Specification:
|
Conductor: | 16/0.2mm (0.5mm²) tinned copper wire |
|
Insulation: | Foamed polyproplylene, black, red, OD 1.85mm |
|
Screen: | Bondable aluminium/polyester tape with 16/0.2mm tinned copper drain wire |
|
Jacket: | PVC O.D. 5.1mm, black, printed with metre markers |
|
Impedance: | 100 ohms |
|
Capacitance: | 100 pF/metre core to core, 198 pF/metre core to core+screen |
|
Conductor resistance: | 38 ohms/km |
|
Weight: | 3.3kg/100m |
|
Reel length: | 500 metres |
|
Cut lengths: | Available in any multiple of 1 metre |
