32-400 JUMPER WIRE JWH1 Black (BT CW1423) (reel of 200m)

per reel (ex. VAT) 1+ 5+ 10+ 25+
Price £ 35.00 33.43 31.85 30.63
JUMPER WIRE JWH1 Black (BT CW1423) (reel of 200m)

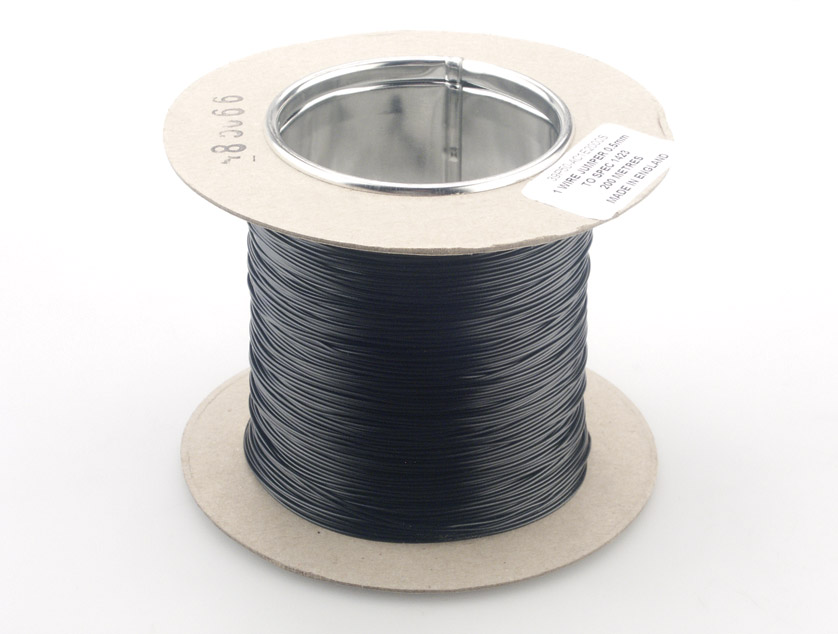

Image may be provided for illustrative purposes only, please consult the product description for exact details.

JUMPER WIRE JWH1 Black (BT CW1423) (reel of 200m)JUMPER WIRE JWH1 Black (BT CW1423) (reel of 200m)

Description

JWH SERIES - UNSCREENED TWISTED PAIR SOLID CONDUCTOR JUMPER WIRE

Solid conductor 1, 2 and 3-core jumper wires specifically for use with Krone and other IDC systems. Three-core version is specifically for use with Krone ABS blocks.

CW1423 type

These have a hardened grade of PVC for their outer insulation, specifically designed for use in larger wiring frames, where the wires may be subject to more mechanical stress, and where a harder jacket is desirable to reduce the risk of chafing. All versions conform to BT CW1423 specification (which directly supercedes CW1257, which specified the now obsolete “irradiated cross-linked PVC”).

Technical Specification:

Conductors:1/0.5mm (0.2mm sq.) tinned copper wire
Insulation:OD 1.0mm, various colours
Lay-up:Cores twisted together (2 and 3-core types)
Reel length:100 metres (sold as full 100 metre reels only)
