33-250 CANFORD HPS CABLE

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 2.43 1.95 1.87 1.80 1.65

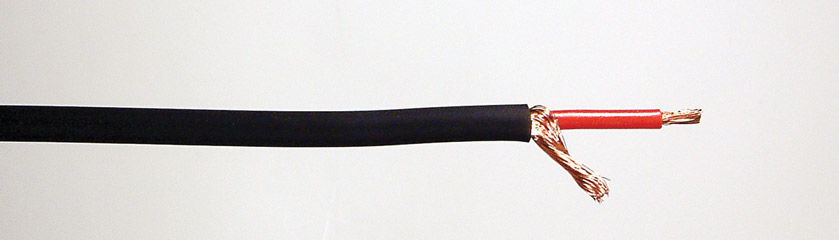

CANFORD HPS CABLE
CANFORD HPS CABLECANFORD HPS CABLE

Description

HPS - HIGH POWER SPEAKER CABLE

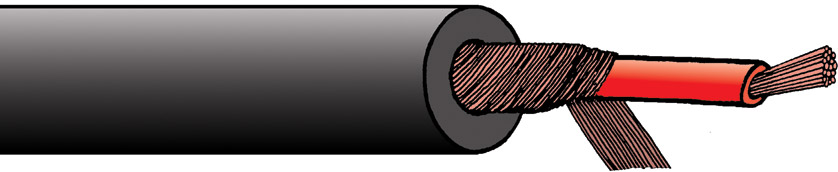

Two conductor 2.5mm² cross section extra flexible cable for loudspeaker wiring. A concentric construction is used, to enable the cable to fit into all XLR connectors. Inner and outer conductors use the same number of same size strands for improved damping factor and high performance. Conductor size is 0.15mm which we consider the optimum for flexibility and for least risk of stray undetected strands causing possible connector shorts, which is the major disadvantage of ultrafine wires used by some manufacturers in this cable construction. Jacket is soft matt black PVC, OD 6.80mm.

Technical Specification:

Inner conductor:140 × 0.15mm plain copper
Insulation:PVC, red
Outer conductor:140 × 0.15mm plain copper, wound helically in two layers, opposite lays.
Outer jacket:Soft PVC, matt black, OD 6.80mm
Weight:8.7kg/100m.
Reel lengths:100m and 500m
Cut lengths:Available in any multiple of 1 metre
