33-451 CANFORD MCS-LFH CABLE 4 core

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 3.46 2.77 2.67 2.56 2.36
CANFORD MCS-LFH CABLE 4 core

Description

Product resources

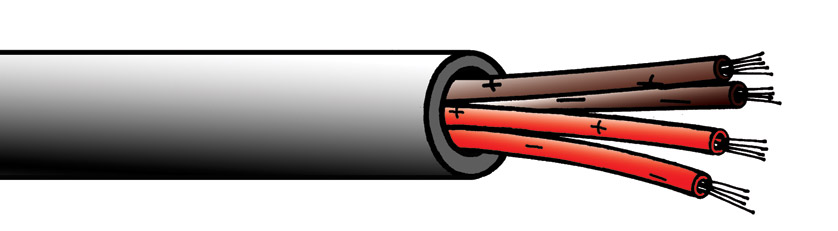

MCS-LFH - MULTICORE SPEAKER CABLE Low Fire Hazard - 2.5mm sq. conductors

Two and four-core 2.5mm sq. cross section multicore cable for fixed installation loudspeaker wiring when Low Fire Hazard ('LSOH') designs are specified . Core pairs are colour-coded using the resistor colour code as there is no standard coding for loudspeaker cables (not mains colour codes) and printed for unambiguous phasing.

Cores are colour coded and printed as follows:

Core no/Neutrik pin no.1+1-2+2-
ColourBrownBrownRedRed
Marking+-+-

Technical Specification:

Conductors:50/0.25mm (2.5mm sq,)
Insulation:LFH material, radial thickness 0.6mm, OD 3.4mm, coloured and marked as above
Lay-up:2 or 4 cores printed black and laid together
Outer jacket:LFH material, matt black
Overall diameter:MCS-LFH 2 9.8mm, MCS-LFH 4 11.5mm
Weight:MCS-LFH 2 14.5kg/100m, MCS-LFH 4 20.0kg/100m,
Reel lengths:500m
Cut lengths:Available in any multiple of 1 metre
