34-910 CANFORD HSP-F CABLE 2 core, Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.36 1.09 1.05 1.01 0.93
CANFORD HSP-F CABLE 2 core, Black

Description

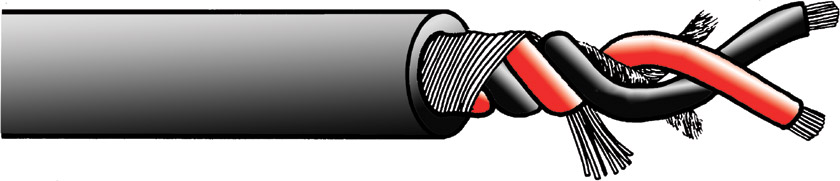

HSP-F - HELICAL SCREENED STRANDED CONDUCTOR DC POWER CABLE Flexible

A screened, twisted conductor, flexible cable for DC powering applications where switching transients or other noise may interfere with adjacent low level audio circuits. Conductor size is 0.5 mm. sq., and the cable is printed "Screened DC power" along its length.

Technical Specification:

Conductors:64/0.10mm (0.50 mm. sq.) plain copper wire
Insulation:PVC O.D. 1.86mm, red, black
Voltage rating:500V DC
Current rating:3A
Twisting and lay:2 x 0.5 mm. sq. plus 2 x cotton fillers 30mm lay length
Screen:0.1mm lapped plain copper wire, 95% optical coverage
Overall jacket:Soft semi-matt PVC, OD 6.2mm
Max. conductor resistance:4 ohms/100 metres
Weight:5.2 kg/100m
Reel lengths:100m and 500m
Cut lengths:Available in any multiple of 1 metre
