Description

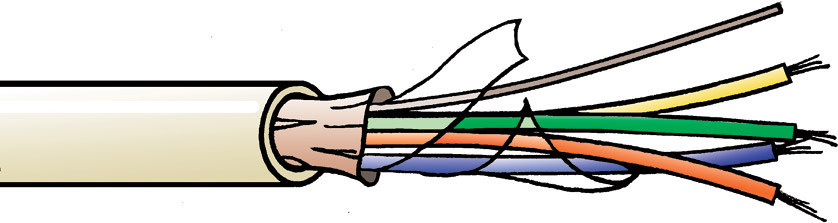

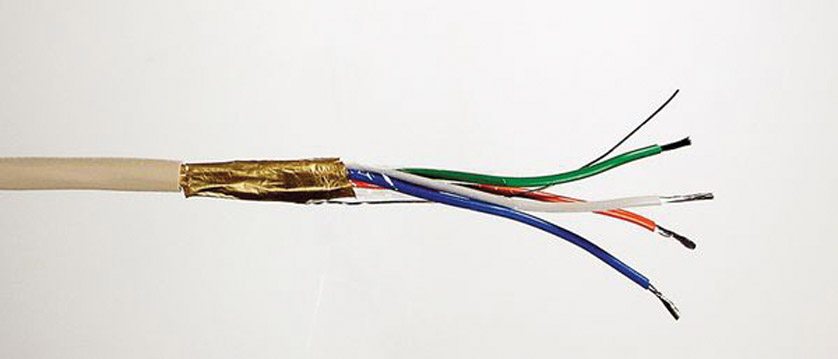

FSG - FOIL SCREENED STRANDED CONDUCTOR GENERAL PURPOSE CABLE (BBC PSF4/2)
High current semi-flexible cable to BBC specification, suitable for DC power supplies and loudspeaker connections, with stranded conductors and an overall foil screen with drain wire.
Technical Specification:
|
BBC specification: | PSF4/2M |
|
Voltage rating: | 100V DC |
|
Conductors: | 24/0.2mm (0.75mm²) |
|
Current rating: | 3A |
|
Insulation: | PVC, white, blue, orange, green |
|
Screen: | Aluminium or aluminium/plastic laminate – 30% overlap |
|
Drain wire: | 1/0.5mm or 7/0.2mm |
|
Overall jacket: | PVC cream, 6.3mm OD |
|
Conductor resistance: | 26 ohms/km |
|
Weight: | 6.0kg/100m |
|
Reel length: | 100m |
|
Cut lengths: | Available in any multiple of 1 metre |
