36-013 CANFORD CVAP3 CABLE Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 5.69 4.55 4.38 4.21 3.87
CANFORD CVAP3 CABLE Black

Description

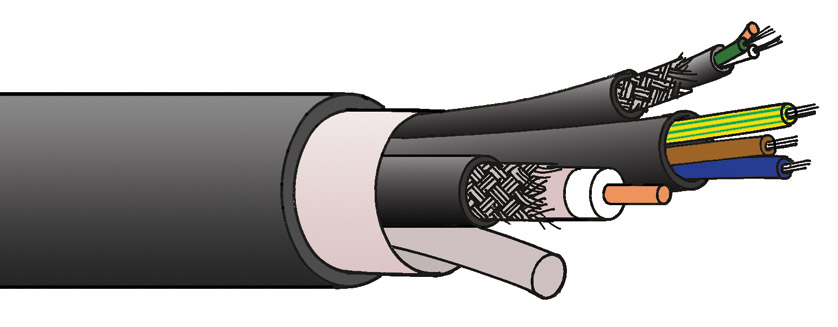

CVAP SERIES - COMBINED VIDEO, AUDIO AND POWER CABLE

This is an extremely flexible composite cable, designed for both studio and location applications. It has one digital video core (SDV), one digital audio foil and braid screened pair and one 3-core (1.0 mm sq.) power core. All elements are individually jacketed, then jacketed overall with soft PVC with a 3mm wall thickness for high levels of protection.

Technical Specifications:

Video element:SDV style 0.6/2.8/4.5, 75 ohm
Audio element:Twisted pair., with foil and braid screen, 110 ohm
Power element:3-core 1.00 sq.mm AC mains power
Overall jacket:Soft PVC, black, O.D. 16.00mm
Weight:19.8kg/100m
Reel length:500 metres
Cut lengths:Available in any multiple of 1 metre
