36-290 CANFORD RCM CABLE (BBC PSF1/6)

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.46 1.17 1.12 1.08 0.99
CANFORD RCM CABLE (BBC PSF1/6)
CANFORD RCM CABLE (BBC PSF1/6)CANFORD RCM CABLE (BBC PSF1/6)

Description

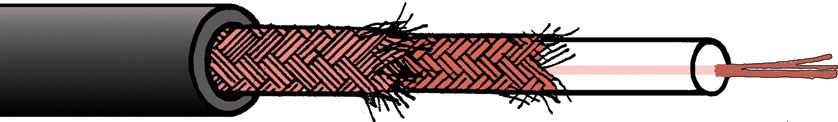

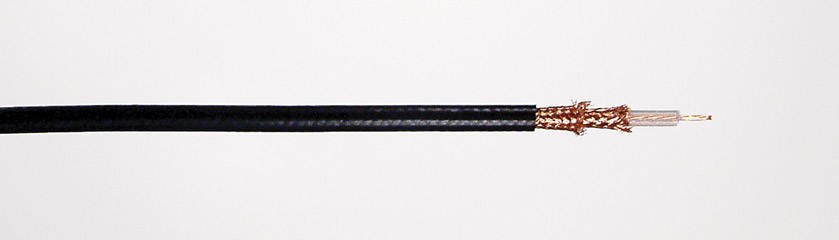

RCM - RF/DATA CABLE 50 ohm miniature (BBC PSF1/6)

A miniature 50 ohm coaxial cable to a BBC specification for UHF and VHF applications.

Technical Specification:

Cable size group:D
BBC specification:PSF1/6M
Centre conductor:7/0.32mm plain copper wire
Dielectric:Solid polyethylene, 2.95mm dia
Braid 1:90% cover 0.1mm plain copper wire
Braid 2:95% cover 0.1mm plain copper wire
Jacket:PVC, black, 5.0mm OD
Impedance:50 ohms
Capacitance (nom):100pF/m
Attenuation at 200MHz:25dB/100m
Attenuation at 1GHz:60dB/100m
Max. voltage (peak):5.2kV pulse 2.6kV RF
Weight:4.4kg/100m
Reel length:100m, 500m
Cut lengths:Available in any multiple of 1 metre
