36-509 CANFORD SDV CABLE Cream

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 0.69 0.56 0.53 0.51 0.47

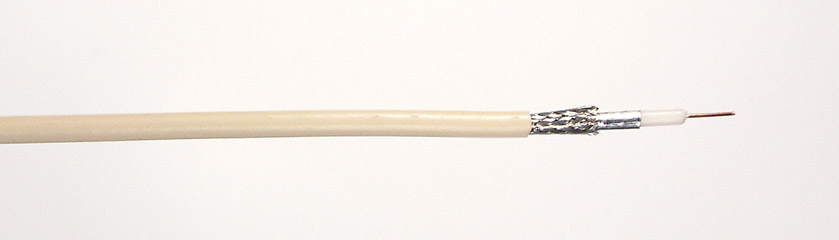

CANFORD SDV CABLE Cream
CANFORD SDV CABLE CreamCANFORD SDV CABLE Cream

Description

SDV - HDTV AND SERIAL DIGITAL VIDEO CABLE

Coaxial 75 ohm cable specifically for serial digital video signals, with compact size.

Technical Specification:

Cable size group:X
Inner conductor:0.6mm plain copper
Dielectric:Foam polyolefin, 2.80mm O.D.
Screen 1:Aluminium/polyester/aluminium tape longitudinally applied
Screen 2:0.122mm tinned copper braid, optical coverage 95%

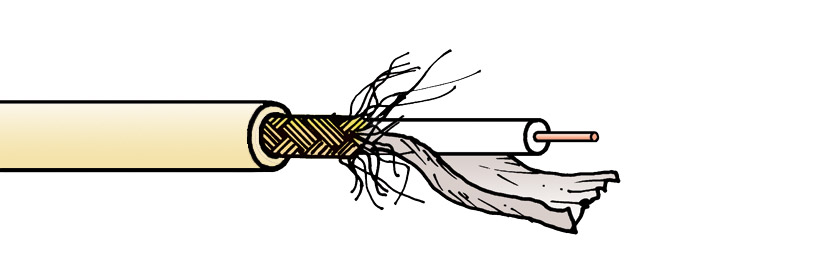

Construction: Coaxial cable
Jacket:PVC, cream, OD 4.5 ± 0.3mm
Impedance:75 ± 1% ohms
Capacitance:56pF/m nominal
Return loss:26dB nom. 50-300 MHz
22dB nom. 300-3000 MHz
18dB nom. 3000–3500 MHz
15dB nom. 3500–5000 MHz
Attenuation:MHz1510135180270
dB/100m1.202.503.5012.2014.2317.74

3607201000150030004500
20.4829.8835.3043.2063.6082.20
Weight:3.2kg/100m
Reel length:500m
Cut lengths:Available in any multiple of 1 metre
