36-566 CANFORD SDV-HD CABLE Turquoise

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 3.52 2.81 2.71 2.60 2.39
CANFORD SDV-HD CABLE Turquoise

Description

Product resources

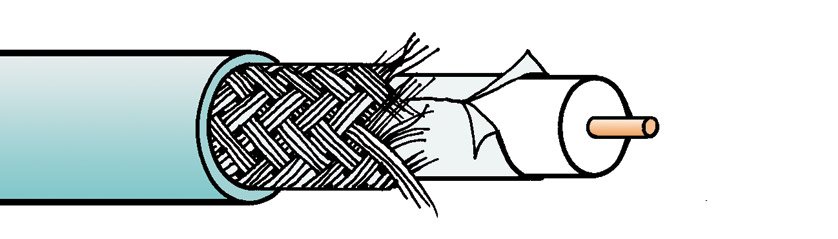

SDV-HD - HDTV AND SERIAL DIGITAL VIDEO CABLE

Ultra low-loss coaxial 75 ohm cable specifically for HDTV and serial digital video signals.

Suitable crimp BNC’s are available – see index. Due to the large diameter and rigidity of group Z cables, strain relief bushes are not required.

Technical Specification:

Cable size group:Z
Inner conductor:1.63mm plain copper
Dielectric:Gas injected foam high density polyethylene, 7.5mm O.D.
Screen 1:Aluminium/polypropylene/aluminium tape
Screen 2:Tinned copper braid, optical coverage 95%
Screening efficiency:95%
Construction:Coaxial cable
Jacket:PVC, turquoise
Overall diameter:10.2mm
Minimum bend radius:100mm indoor
Impedance:75 ohms
Capacitance:56pF/m nominal
Attenuation:MHz1510135180270
dB/100m0.400.991.405.105.907.20

3607201000150030004500
8.4011.8013.9024.1034.0941.75
Weight:13.6kg/100m
Reel length:500m
Cut lengths:Available in any multiple of 1 metre
