39-315 EXPANDABLE SLEEVING Size 115

per metre (ex. VAT) 1+ 10+ 50+ 100+
Price £ 1.33 1.27 1.22 1.16

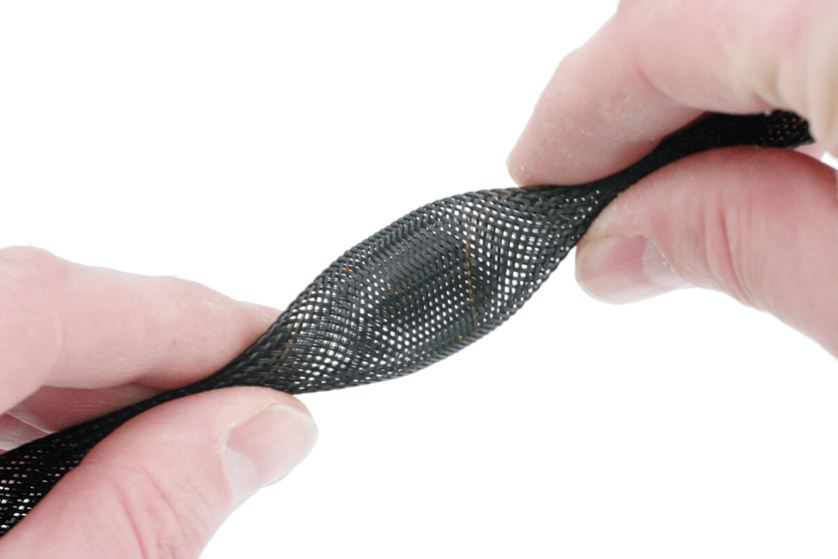

EXPANDABLE SLEEVING Size 115

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

BRAIDED SLEEVING - EXPANDABLE

This sleeving consists of polyethylene terepthalate (PET) monofilaments braided in such a way as to allow the diameter to expand by a minimum of 60% either by compressing the sleeving or by the insertion of cable and/or components. It is principally useful for looming a number of different cables together, for example tape machine looms. Supplied cut to length as required and charged according to the total length of size ordered, but note that the maximum single piece length of any size is 100 metres. Length is measured at minimum diameter, note that expanding the diameter results in a reduction in length. Colour: Black.

SizeMin bundle diam. (mm)Max bundle diam (mm)Stock coil length (m)
110715100
1151021100
1201427100
1251834100
1302847100
1403564100
1504575100

Note: Due to recent supplier changes, some of the dimensions have changed since the 2010 catalogue was published.
