45-029 CANFORD LACING BAR KIT Type B

each (ex. VAT) 1+ 5+
Price £ 11.24 10.87
CANFORD LACING BAR KIT Type B

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

LACING BARS

Used for the orderly management of cables wired to such items as jackfields and connector panels, these simple items of hardware are offered to the installer or custom builder as a convenient method of tidying cable looms etc.

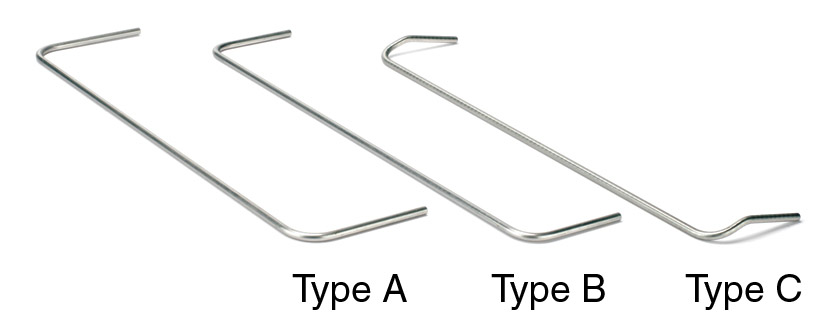

Manufactured from stainless steel rod, bent into a ‘flattened U’ shape, tapped at each end with a mounting thread. Type A is as used on Mosses & Mitchell type bantam jackfields, stock code 45-140 etc. Type B is as used on Mosses & Mitchell type B-gauge jackfields, stock code 45-120 etc. Type C is a variation of Type B, for use when the cable has to be tied offset from the mounting points, giving angled ends to the lacing bar, allowing a 22.6mm deviation of the tying cross section of the bar relative to the mounting points. Supplied complete with both nickel finish and black finish countersunk fixing screws.

Technical Specification:

Type AType BType C
Rod diameter:6.3mm6.3mm6.3mm
Mounting pitch:435mm420.7mm420.7mm
Stand off from panel:90mm110mm90mm
Thread × depth:M4 × 12mmM4 × 12mmM4 × 12mm
