45-097 CANFORD DESIGNATION STRIP A

each (ex. VAT) 1+
Price £ 9.09
CANFORD DESIGNATION STRIP A

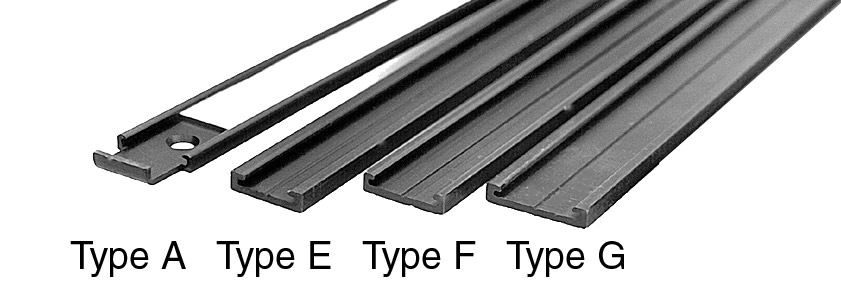

Image may be provided for illustrative purposes only, please consult the product description for exact details.

Description

DESIGNATION STRIPS

Types A-D

Black anodised finish, 13mm high (external) turned up ends to retain inserts, countersunk holes (6BA) for mounting, supplied complete with paper legend insert strip, clear plastic cover strip, and mounting hardware. Spare insert strips and covers also available.

Available as standard in four lengths. Overall width 13mm, insert strip width 11mm. Height 2.7mm.

TypeOverall lengthInsert lengthMounting holesSuitable for

A432mm418mm5 at 101.6mm centres19" rackmount panels
D404mm390mm4 at 126mm centres19" rackmount panels
C145mm131mm2 at 120mm centres2-gang connector plates
B85mm71mm2 at 60mm centres1-gang connector plates

Manufactured by Canford Audio.

Types E-G

Black anodised finish, plain extrusion without turned-up ends or mounting holes. Supplied in lengths of 1.4m without insert strips or plastic cover strips. Type E is 12.0mm high, F is 13.0mm and G is 16.0mm (external). Legend insert strips (432.0mm length) are available in packs of 5 for type F. Plastic cover strips are available for all types, length 432.0mm. Black plastic end stops are available for types F and G, which push into the end of the strip.
