49-245 CANFORD IMPEDANCE CONVERTER BXM Inline, AES/EBU, XLRM to BNC socket

each (ex. VAT) 1+
Price £ 69.00

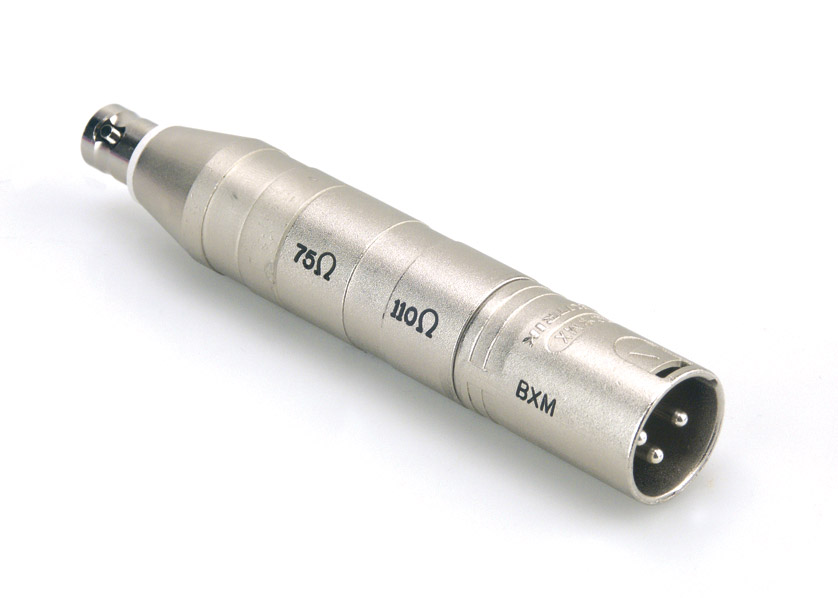

CANFORD IMPEDANCE CONVERTER BXM Inline, AES/EBU, XLRM to BNC socket

Description

IMPEDANCE CONVERTERS - AES/EBU - In-line

BXF/BXM

Two units, utilising a high quality miniature high frequency transformer, specially manufactured for Canford Audio, for matching balanced 110 ohm digital audio circuits to unbalanced 75 ohm video circuits. Balanced, 110 ohm, audio connection is by 3 pin XLR (BXF female, BXM male), 75 ohm unbalanced connection is by BNC female. Both units are bi-directional.

Technical Specification:

Bandwidth:0.1 - 6.0 MHz
Max. voltage:5.0V P-P
VSWR:<1.1 (0.1-6.0MHz)
Insertion loss:<0.3dB
