48-226 LEMO TRIAX 8.5 Cable panel plug (FBB.4M.650.CTLC90)

each (ex. VAT) 1+ 10+
Price £ 165.50 144.80
Special order product. Order cancellations may incur charges
LEMO TRIAX 8.5 Cable panel plug (FBB.4M.650.CTLC90)

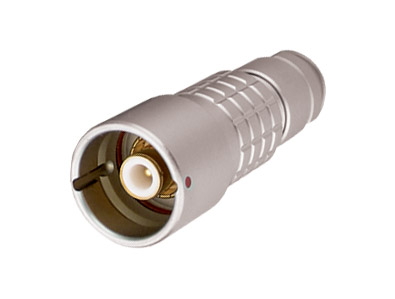

Image may be provided for illustrative purposes only, please consult the product description for exact details.

LEMO TRIAX 8.5 Cable panel plug (FBB.4M.650.CTLC90)LEMO TRIAX 8.5 Cable panel plug (FBB.4M.650.CTLC90)

Description

LEMO TRIAX CONNECTORS - 4M Series - BBC Style

Triax connectors suitable for use with 8.5mm, 11.2mm and 14.0mm triax cables. Water tight to IP66. Moulded cable support sleeves should be ordered separately (BBC convention is red with cable socket, yellow with cable plug). Elastomer corrugated sleeves (“gaiters”) are also available, red is convention for cable socket, yellow for cable plug. “Plugs” stocked by Canford have a female centre contact, “sockets” have a male centre contact (conforming to BBC usage).

Spare connectors shells are also available, as replacements for parts damaged in service. These can be fitted without removal of connector from the cable.

In addition, the moulded cable support sleeves are available as retrofits for older style connectors. A new back nut needs to be fitted with each sleeve. Note that fitting these parts can only be done when the connector is re-terminated onto the cable.
