Manufacturers description

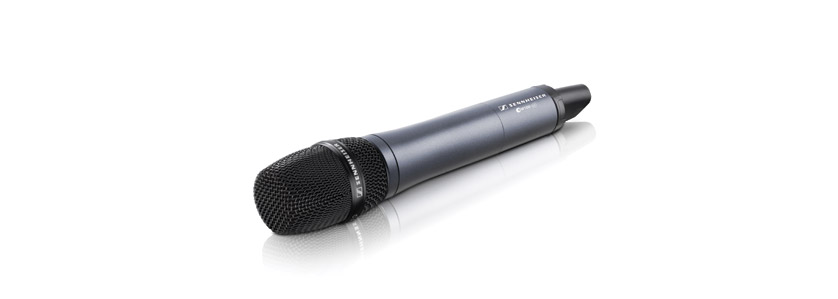

SKM 100-845 G3
The SKM100-845 G3 raises the bar with it’s integral sync function. The transmitter automatically adjusts to a corresponding G3 receiver with a simple push of the receiver’s sync button. The capsule is based on the evolution 800 series, providing rich sound while minimizing the risk of feedback. The directivity of the mic reproduces the voice clearly while rejecting ambient background noise; this makes it a great choice where feedback may be an issue. Perhaps you want a different pick-up pattern or sound characteristic? The newly developed G3 microphone heads can be changed out in seconds without tools.
Features
- Sturdy metal housing (transmitter and receiver
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 32 compatible frequencies
- Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitter parameter from receiver
- User-friendly menu operation with more control options
- Illuminated graphic display, receiver also shows transmitter settings
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter feature battery indicatation in 4 steps, also shown on receiver display
- Easy-exchangeable microphone modules from evolution series
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement
Includes
- 1 SKM 100-845 G3 handheld transmitter (dynamic, super-cardioid)
- 1 MZQ 1 microphone clip
- 2 batteries
- Operating instructions
Specifications
Product Sheet (PDF)
- RF frequency range
- 516 ..... 865 MHz
- Transmission/receiving frequencies
- 1680
- Presets
- 12
- Switching bandwidth
- 42 MHz
- Peak deviation
- +/- 48 kHz
- Compander
- HDX
- Frequency response (microphone)
- 80.....18000 Hz
- Signal-to-noise ratio
- > 110 dB(A)
- THD, total harmonic distortion
- < 0,9 %
- In compliance with
- ETS 300422 , ETS 300445 , CE , FCC
- RF output power
- 30 mW
- Operating time (transmitter)
- >8 h
- Dimensions (Transmitter)
- d= 50 mm, l= 265 mm
- Weight (Transmitter)
- 450 g
- Transducer; Microphone type
- dynamic
- AF sensitivity
- 1,6 mV/Pa
- Sound pressure level (SPL)
- 154 dB(SPL) max.
- Pick-up pattern
- super-cardioid
Description
SENNHEISER RADIOMICS - Evolution G3 - 100 series
The G3 series radiomics are available as complete systems or in component form with either handheld transmitters, plug-in transmitters or belt-pack transmitters for use with instruments or lapel microphones. The range includes both static AC-powered receivers and battery-powered types for use in ENG.
These products have been introduced very recently, and are available now. Further information is being prepared, and will be added in the near future.
