Manufacturers description

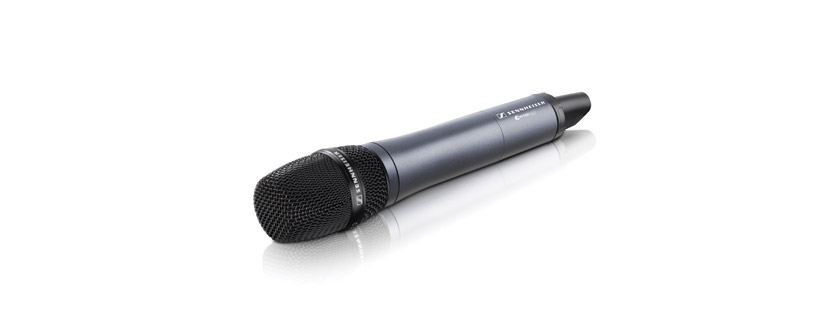

SKM 500-965 G3
With its ultra-reliable performance and professional features like 32 frequency presets per range, the SKM 500 hand-held transmitter is a true marvel of audio technology. While the G3 wireless technology is impressive, the real star of this combination is clearly the true condenser evolution 965 microphone. The uniquely resonant and distortion-free sound of the large diaphragm dual-capsule microphone lets the singing voice become an authentic and intimate experience for any audience. Experience a studio-quality true-condenser microphone that is designed for wireless stage use. The 965 capsule can be switched between cardioid and super-cardioid patterns, making it versatile for a wide variety of styles.
Features
- Sturdy metal housing (transmitter and receiver
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 32 compatible frequencies
- Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitter parameter from receiver
- User-friendly menu operation with more control options
- Illuminated graphic display, receiver also shows transmitter settings
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter feature battery indicatation in 4 steps, also shown on receiver display
- Easy-exchangeable microphone modules from evolution series
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement
Includes
- 1 SKM 500-965 G3 handheld transmitter (condenser, large diaphram, cardioid/super-cardioid)
- 1 MZQ 1 microphone clip
- 1 protective pouch
- 2 batteries
- Operating instructions
Specifications
Product Sheet (PDF)
- RF frequency range
- 516 ..... 865 MHz
- Transmission/receiving frequencies
- 1680
- Presets
- 32
- Switching bandwidth
- 42 MHz
- Peak deviation
- +/- 48 kHz
- Compander
- HDX
- Frequency response (microphone)
- 80.....18000 Hz
- Signal-to-noise ratio
- > 115 dB(A)
- THD, total harmonic distortion
- < 0,9 %
- In compliance with
- ETS 300422 , ETS 300445 , CE , FCC
- RF output power
- 10/30 mW
- Operating time (transmitter)
- >8 h
- Dimensions (Transmitter)
- d= 50 mm, l= 265 mm
- Weight (Transmitter)
- 450 g
- Transducer; Microphone type
- electret-condenser
- AF sensitivity
- 1,8/5,7 mV/Pa
- Sound pressure level (SPL)
- 144/154 dB(SPL) max.
- Pick-up pattern
- super-cardioid
Description
SENNHEISER RADIOMICS - Evolution G3 - 500 series
The G3 series radiomics are available as complete systems or in component form with either handheld transmitters, plug-in transmitters or belt-pack transmitters for use with instruments or lapel microphones. The range includes both static AC-powered receivers and battery-powered types for use in ENG.
These products have been introduced very recently, and are available now. Further information is being prepared, and will be added in the near future.
