Description
TRANTEC RADIO MICROPHONE SYSTEMS - Racked and Ready
Based on Trantec's UHF radiomic products, these compact multi-channel flight-cased packages are supplied ready for deployment and will appeal to schools, amateur dramatics, churches and performers. Packages with up to twelve radiomics are available, with any combination of handheld or belt-pack transmitters.
The custom flight cases are fitted with 19-inch rack-mounting hardware and have removable lids at front and rear. Inside are a number of rack-mounted receivers, appropriate antenna distribution systems and a single power supply which feeds all the equipment from a single power cable.
All internal equipment is wired; the packages use two external antennae with remote head amplifiers, connected on site with the two ten metre cables, and mounted on the two microphone stands supplied.
Please refer to the entries describing the individual systems for information about the hardware, frequency availability and technical specifications.
Radiomic transmitters and accessories, antennae, antenna cables and head amplifiers, antenna stands and power lead are supplied in separate cardboard packaging, and are NOT flight-cased.
Optional accessories: For those requiring a completely packaged system, not wishing to use existing flight cases for the items not racked in the flight case, 16-601 Canford microphone stand bag will accommodate the stands, cables, antennae and head amplifiers. See 'Canford Microphone Stand Bags' for further details. For suitable protection for the transmitters, see the extensive selection of hard and soft cases in 'Racks and Hardware'.

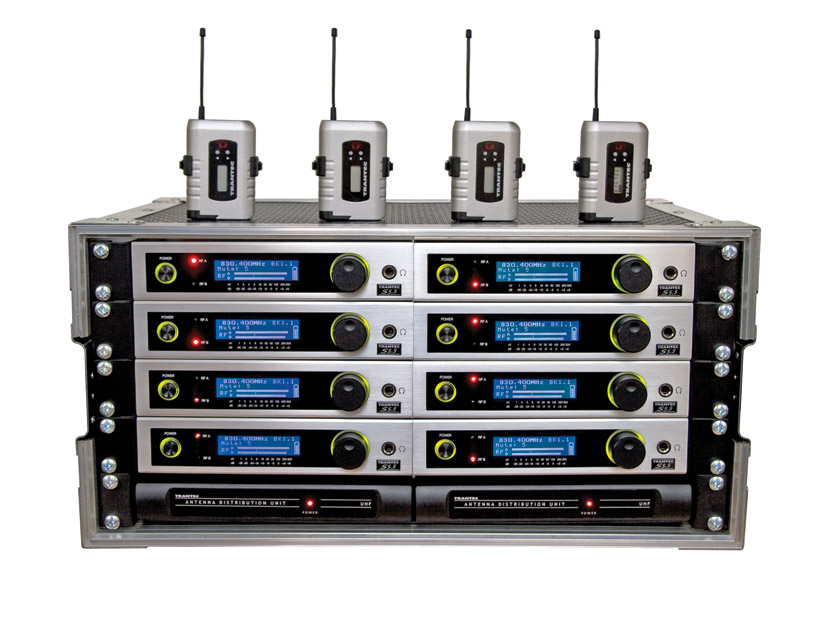

Four-Radiomic Packages
The rack contains four receivers, a four-way antenna distribution unit, power supply and cabling. The case is 4U internal height, allowing for expansion, with 1U covered with a blank panel.
Four radiomic transmitters, comprising hand-held or belt-pack types with microphones, are supplied in separate packaging with a power lead, two antenna cables, two antenna head amplifiers two antenna stands and two antennas.
Eight-Radiomic Packages
The rack contains eight receivers, two four-way antenna distribution unit, power supply and cabling. The case is 5U internal height.
Eight radiomic transmitters, comprising hand-held or belt-pack types with microphones, are supplied in separate packaging with a power lead, two antenna cables, two antenna head amplifiers two antenna stands and two antennas.
Twelve-Radiomic Packages
The rack contains twelve receivers, three four-way antenna distribution units, power supply and cabling. The case is 8U internal height, with 1U covered with a blank panel.
Twelve radiomic transmitters, comprising hand-held or belt-pack types with microphones, are supplied in separate packaging with a power lead, two antenna cables, two antenna head amplifiers two antenna stands and two antennas.
