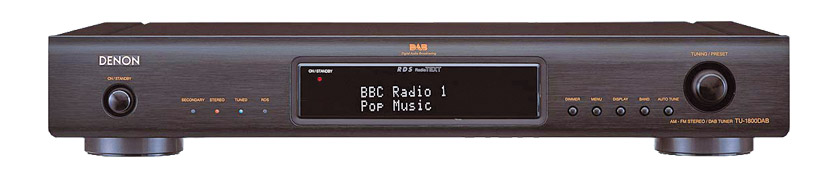

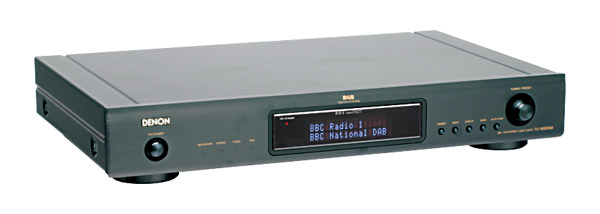

CANFORD DAB BROADCAST TUNER
Based on a Denon TU-1800DAB digital radio tuner, these versions have Canford modifications, approved by the manufacturer, providing professional-level balanced outputs and an IEC320 mains inlet connector.

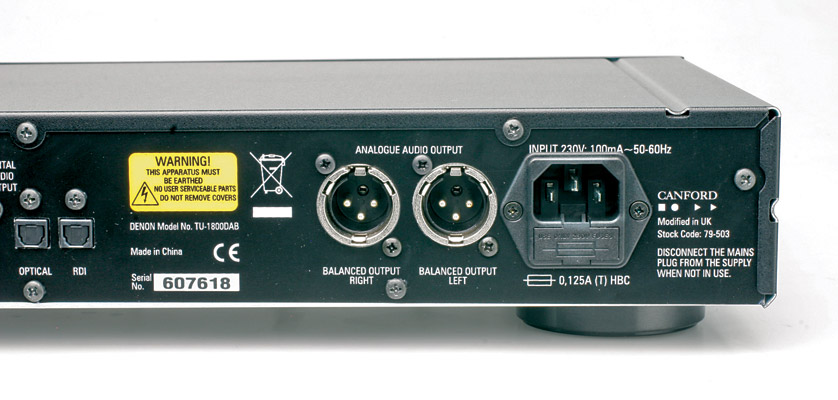

Two XLR 3-pin male connectors are provided, electronically balanced, fed by the same source as the standard RCA(phono) outputs.
The FM status monitoring function option (79-505) gives a normally-open, normally-closed and common contact for each monitored function. Traffic flag on/off, stereo beacon present/absent and carrier present/fail are monitored. These are provided on a D-sub 9-pin female connector.
Tuning range:||DAB Band III 174-240 MHz, DAB Band L 1452-1491 MHz, FM 87.5 – 108.0MHz, AM 522 – 1611kHz|
DAB antenna:||F-type 75 ohm|
FM antenna:||Coaxial, 75 ohm|
AM antenna:||Two spring lever terminals|
Two RCA (phono), -10dB nominal, unbalanced
Two XLR 3-pin male, 0dB nominal, balanced
Digital (DAB, 48kHz), optical coaxial
FM status monitoring: D-sub 9-pin female (79-505 only)
Power source:||230V AC, 14W (cable not included)|
Dimensions:||434(w) x 74(h) x 286(d) mm|
Included accessories: Infra-red remote controller, rackmount ears (2U) and ‘T’ indoor aerial.
