All models in this have front-loading slots for CD playback. They can be mounted in a 19-inch rack by using the included rack brackets or used free-standing without the brackets. USB media connections are also included so that audio may be played back from either USB flash media or external mass storage.
This is a 1U media player intended for use in commercial audio installations such as retail, hotel, conference and education. It combines a CD player and USB connection for direct playback from a USB thumb drive. A 3.5mm auxiliary input is also available for the connection of other audio devices.
Ten direct track-access buttons make for simple and quick track selection and playback. Global transport controls (play/pause, stop, and search) and a backlit LCD screen ensure intuitive operation.
The slot-loading CD drive is compatible with CD-DA, CD-ROM, CD-R, MP3-CD, with MP3 files from 32 to 320kbps and VBR bit-rate supported. The output is via balanced 3-pin male XLR connectors and unbalanced RCA (phono) sockets.
USB drive compatibility: Up to 32GB (maximum file size 2GB). Power source: 230V AC, 50/60Hz, 30W. Dimensions: 483 x 347 x 44 (w x d x h)mm (with rack brackets); 434 x 347 x 44mm (without rack brackets). Weight: 3.6kg.

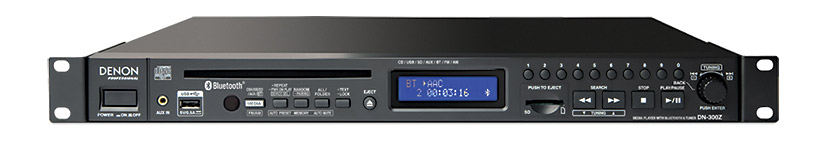

DN-300ZB - With AM/FM Tuner - Bluetooth
A 1U music source intended for commercial audio installations such as education, houses of worship, leisure facilities and dance studios, this combines a CD player, USB and SD/SDHC media player with AM/FM tuner and Bluetooth receiver for wireless playback of audio content stored on mobile devices and computers. A 3.5mm auxiliary input allows for the connection and audio playback from other wired devices.
A simple menu structure, global transport controls (play/pause, stop and search), 10-key, direct, CD track-access and a backlit LCD screen ensure intuitive operation.
The slot-loading CD drive and solid-state media ports are compatible with CD-DA, MP3, WAV and AAC file formats. During wireless playback via Bluetooth the DN-300ZB is compatible with SBC, MP3, AAC and aptX formats.
The output is via balanced 3-pin male XLR connectors and two pairs of unbalanced RCA (phono) sockets. The AM/FM tuner feeds one pair and the CD, USB, SD, Bluetooth and AUX are combined on the second.
DN-501C - Digital outputs
This broadcast-grade, 1U rack-mounting CD and USB media player has both balanced and unbalanced analogue outputs as well as S/P-Dif and AES/EBU digital outputs and is intended for broadcast and other professional use. As well as the ability to import (or 'rip') data from CD to an attached USB storage device as a WAV file, additional audio file formats such as MP3, AAC and AIFF can be replayed as well as CD-DA. Other functions include connection via USB of iPhone or iPod, allowing for digital playback of an iTunes library, and the ability to work with the free Denon Professional 'Pitch Key' app (available on the Apple AppStore) to allow control of playback by adjusting pitch, tempo or both of any audio file in the device.
The front panel has a blue, multi-function, OLED display, showing time and track data and other disc information. Transport controls are 'Play', 'Pause', 'Stop' and 'Forward' and 'Rewind'. There are also buttons for 'Cue', and 'Media' which switches between media types, 'Trk.No.' which allows tracks to be selected directly, 'Frame' which allows a frame search mode and starts 'Audible Pause' (allowing frame by frame reviewing of the audio in an audible state). Alternative functions of these buttons, by holding the 'Shift' button, include 'List' (displays media file list), 'Hot Set' (sets Hotstart tracks) and 'Pitch' button enables vari-speed mode, the speed being adjusted by the 'Shift'ed Forward and Rewind buttons to set to +/- 16% (2 semitones) of nominal in 0.1% increments. A second group of buttons include 'Lock' allowing full or partial button locking, 'Menu' selection, 'Text' display, an 'A-B' button which sets up loop-start and end points and 'Single/Cont.', which selects continuous or repeat play. There is a 6.35mm 3-pole jack socket for headphones, with a level control, and a large, power button with bi-colour LED, which can also be locked.
On the rear, connectivity consists of two pairs of RCA (phono) sockets, for left and right, fixed and variable-level, unbalanced, analogue outputs. Balanced left and right analogue outputs are available on XLR male connectors; preset level-trim controls are provided for each output. Digital outputs are S/PDIF (IEC-958 Type II) from an RCA (phono) socket and AES/EBU on an XLR male. The RS232-C serial remote control port is a 9-pin female D-sub connector, and the parallel remote control port a 25-pin female D-sub connector. The AC power input is an IEC receptacle.
On the rear, connectivity consists of a pair of RCA (phono) sockets, for left and right, unbalanced, analogue outputs, b. Balanced left and right analogue outputs are available on XLR male connectors. Digital outputs are S/PDIF (IEC-958 Type II) from an RCA (phono) socket and AES/EBU on an XLR male. Trim control is available on the front panel by holding Shift and rotating the jog dial.
Connectivity, on the rear of the unit, consists of left and right unbalanced RCA (phono) outputs, balanced left and right 3-pin XLR male outputs, digital S/PDIF (IEC-958 Type II) from an RCA (phono) socket and AES/EBU on an further XLR male. Trim control is available on the front panel by holding Shift and rotating the jog dial. The RS232-C serial remote control port is a 9-pin female D-sub connector; this is able to transmit data including CD Text, ISO and ISRC codes, track-time and number. The parallel remote control port a 25-pin female D-sub connector. The AC power input is an IEC receptacle.
Outputs: +24dBu maximum, 600 ohms, balanced, analogue; +10dBV maximum, 10000 ohms, unbalanced analogue; 0.5Vpp, 75 ohms, S/PDIF; 3.5Vpp, 110 ohms, AES/EBU. Headphones output: 20mW, 32 ohms. Response: 20 to 20000Hz +/-0.5dB. Noise: -105dB relative to 0dB play back, A-weighted. Power source: 230V AC, 50/60Hz, 30W. Dimensions: 483 x 44 x 325 (w x h x d) mm, 1U rack mounting. Weight: 4.0kg.
DN-700C - Digital outputs - Network capable
Designed for use in professional applications including broadcasting, this versatile media player has an embedded web server offering a graphical interface to networked computers. Media may be played from a slot-loading CD drive or by mass-storage devices, including some iPod and iPhone models, via the USB socket on the front panel. Audio may also be streamed over a network from media servers, NAS devices and personal computers using DLNA and UPnP. In addition to network control it has wireless infra-red, wired contact-closure and RS232C remote control.
The 'Web-Remote' interface allows a user 'full control of the DN-700C from menu setup to transport control and hot start playback, even from mobile browsers' when the DN-700C is connected to a suitably configured Ethernet network - connection to a network will require a cable, see Patchcords, RJ45. Denon Product Manager software is included, for 'single point control of multiple players from a computer over the network'. Extra functionality such as pitch/tempo adjustment can be accessed through the 'Denon Professional Pitch Control' App, available from the App Store.
The front panel has a large transport control section and an OLED display for status and menu information. A push-to-enter jog wheel moves between tracks and adjusts output level. Five hot-start buttons provide direct access to specific audio files; they also provide access to key-locking, the main menu, repeat A-B playback, and single or continuous play functions. Further buttons give access to fast forward and fast reverse, pitch control, frame search, media selection, track selection and hot button setting. A 6.35mm headphone socket has a sprung, recessed, level control.
The rear has XLR connectors for the stereo balanced analogue and AES stereo outputs, a pair of RCA (phono) types for unbalanced analogue audio , and a further RCA (phono) connector for the IEC-60958 Type II output (S/PDif). The RS232C and remote control connections are 9-pin and 25-pin D-Sub connectors respectively. An RJ45 socket connects to the network. Power is connected through an IEC inlet.
Compatible media: CD-DA (CD Text), CD-ROM on CD and FAT16, FAT32, HFS+. File types: WAV, AIFF and AIF, 16/24 bit, 96/48/44.1kHz sampling; MP3 and AAC files with M4A, AAC extensions and using AAC-LC compression, 32 to 320kbps bitrate, 48/44.1kHz sample rates.
Analogue outputs: 8.23dBu, 24dBu maximum, 600 ohms minimum load impedance, balanced; 2V RMS, 10dBV maximum, 10k ohms minimum load impedance, unbalanced. Digital outputs: AES/EBU, balanced, 110 ohms; S/PDif coaxial, unbalanced. Headphone output: 20 mW, 32ohms load. Frequency response: 20Hz - 20kHz +/- 0.5dB. Noise: Better than -105dB, A-Weighted. Distortion: Less than 0.005% THD. Dynamic range: Better than 105dB for 24-bit WAV playback. Channel separation: Better than 106dB. Variable pitch: +/- 16%. Level trim adjustment: +/-2.0dB. Power source: 230V AC, 50/60Hz, 30W. Dimensions (WxHxD): 482.6 x 44 x 342mm. Weight: 4.1kg.
