Description

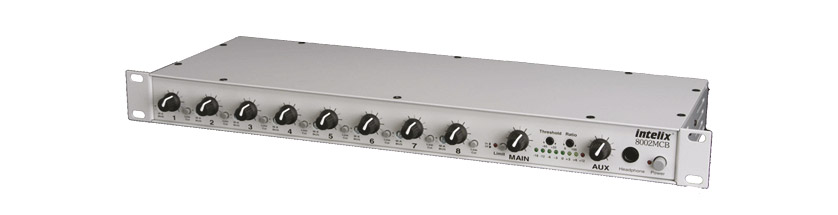

INTELIX 8002MCB MIC/LINE MIXER
A high quality rack-mounting (1U) mixer with eight balanced mic/line input channels and MAIN and AUX outputs, all on XLR connectors, suitable for a variety of installation and location applications.
Each channel has mic/line input selection, individual main/aux selection, gain trim, 120Hz low-cut filter and rotary level control. There is also a line-level aux input, switchable to main or aux outputs, or both, so mixers may be expanded. Main output has rotary level control, eight-segment LED bar-graph meter and switch for VCA limiter with adjustable threshold and ratio, and 50dB pad for mic-level output. AUX output has gain preset, pre/post-level output selection, level control and headphone socket. When “pre” output is selected, the aux-level controls the headphones only. Global 15V switchable phantom power is provided and the unit is powered from an AC (adapter supplied) or a DC source.

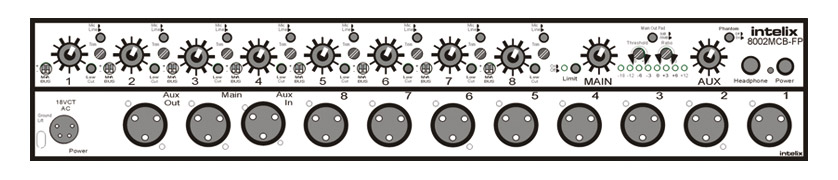

Two versions are available, 8002MCB-XLR has line-pads and gain-trims on the rear panel, for uncluttered (and fiddle-free!) operation, while 8002MCB-FP has line-pads and gain-trims on the front panel, for engineering applications where rear access is limited, such as broadcast OB’s.
Brochure available on request: Contact Technical Support
Technical Specification:
| |
| Frequency response: | 20-20,000 Hz ±0.5dB, 10-30,000 Hz +0/-3dB |
| Maximum voltage gain: | 96dB |
| Equivalent input noise: | -129dB @ 150ohms source, 20-20,000Hz |
| Signal to noise ratio: | 90dB @ 56dB system gain |
| Max input level: | +20dBu |
| Max output level: | +26dBu balanced |
| Crosstalk: | <-90dB |
| Power supply: | 18V AC (external mains adapter supplied) or ±18V DC |
| Dimensions: | 1U x 152mm deep |
| Weight: | 4.3kg |
