EMO POWER DISTRIBUTION PANEL E656

Stock code
42-656
Brand
EMO
Model number
  • E656

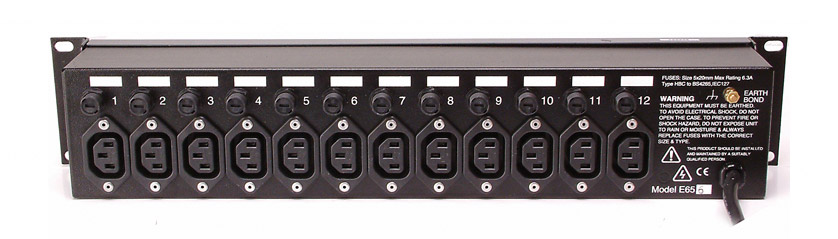

EMO POWER DISTRIBUTION PANEL E656

Image may be provided for illustrative purposes only, please refer to the product description.

EMO POWER DISTRIBUTION PANEL E656EMO POWER DISTRIBUTION PANEL E656EMO POWER DISTRIBUTION PANEL E656

EMO POWER DISTRIBUTION SYSTEM

A range of power distribution panels for 19” rack mounting. Suitable for both fixed and mobile installations. The system allows all rack mounted equipment to be fitted with a standard BS1363 13A, IEC 10 amp type E or Schuko connector, so that installation and removal of equipment is easy and safe. The availability of front mounted sockets allows standard connectors also to be used on portable external equipment. In installations where a large number of outlets are required, the initial unit can supply power to slave units through the outlets on its rear panel. If a detachable power input lead is required, see EMO C-Series Power Distribution System. IEC jumper cables also available – see index.

All models have two neon indicators, the first wired to show the presence of supply input and the second to show failure status of the front-panel 13A fuse, located after the supply input.

Technical Specification:
Socket outlets: Shuttered 13A 3-pin to BS1363, Schuko 16A to CEE7/7 or IEC 6A to IEC 60320 type F.
Power input: 2m 1.25mm² 3 core flex.
Total load: 13A (all versions)
Dimensions: 483mm (19”) × 89mm (2u) × 85mm.
Weight: 2kg.
Type Power Input Front Back Outlet Back outlets
Outlets Outlets connectors fused individually
E625 Fixed 4 1 UK 13A No
E625S Fixed 4 1 Schuko No
E630 Fixed 4 4 UK 13A No
E630S Fixed 4 4 Schuko No
E640 Fixed None 4 UK 13A No
E640S Fixed None 4 Schuko No
E645 Fixed 1 4 UK 13A No
E645S Fixed 1 4 Schuko No
E650 Fixed None 12 IEC 6A No
E655 Fixed 1 12 IEC 6A No
E651 Fixed None 12 IEC 6A Yes
E656 Fixed 1 12 IEC 6A Yes
Note: 3 pin 13 amp connectors are approved for use in the UK and certain non-European countries only.
  Description Price (£) Add to basket
Show carriage
EMO E625 POWER DISTRIBUTION PANEL   Stock code: 42-625
Please login for stock availability and lead times.
£113.00
EMO E625S POWER DISTRIBUTION PANEL   Stock code: 42-626
This item is discontinued. Please contact Technical Support for advice on alternatives.
EMO E630 POWER DISTRIBUTION PANEL   Stock code: 42-630
Please login for stock availability and lead times.
£113.00
EMO E630S POWER DISTRIBUTION PANEL   Stock code: 42-631
This item is discontinued. Please contact Technical Support for advice on alternatives.
EMO E640 POWER DISTRIBUTION PANEL   Stock code: 42-640
Please login for stock availability and lead times.
£109.00
EMO E640S POWER DISTRIBUTION PANEL   Stock code: 42-641
This item is discontinued. Please contact Technical Support for advice on alternatives.
EMO POWER DISTRIBUTION PANEL E645   Stock code: 42-645
This item is discontinued. See the product page for suggested alternatives.
EMO POWER DISTRIBUTION PANEL E645S   Stock code: 42-646
This item is discontinued. Please contact Technical Support for advice on alternatives.
EMO E650 POWER DISTRIBUTION PANEL   Stock code: 42-650
Please login for stock availability and lead times.
£127.00
EMO E651 POWER DISTRIBUTION PANEL   Stock code: 42-651
This item is discontinued. Please contact Technical Support for advice on alternatives.
EMO POWER DISTRIBUTION PANEL E655   Stock code: 42-655
This item is discontinued. See the product page for suggested alternatives.
EMO POWER DISTRIBUTION PANEL E656   Stock code: 42-656
This item is discontinued. Please contact Technical Support for advice on alternatives.
