Neutrik

42-022

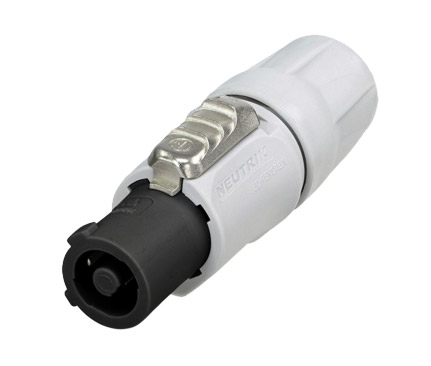

NEUTRIK POWERCON NAC3FCB Mains output cable connector, 20 Amp

Neutrik NAC3FCB

NEUTRIK POWERCON NAC3FCB Mains output cable connector, 20 Amp
NEUTRIK POWERCON NAC3FCB Mains output cable connector, 20 AmpNEUTRIK POWERCON NAC3FCB Mains output cable connector, 20 Amp

NEUTRIK POWERCON AC MAINS POWER CONNECTORS - 20 Amp

'Powercon' offers 20 amp rating in a secure-locking, compact housing, and meets all current safety standards. The series offers a 3-pole connection, with pre-mating earth connection and compact design (the series shares many body components with the 'Speakon' twist-lock loudspeaker connector, though naturally is totally incompatible!). The secure Neutrik strain-relief chuck cable strain relief accepts cables 5-15mm diameter, and the locking is by the twistlock principle with metal latch (as on current 'Speakon' connectors).

Cable connectors have screw terminals (max. wire size 4mm), panel connectors have 'Faston' 4.8 ×0.5mm 'spade' terminals. NAC3MP panel connectors have plain mounting holes and are airtight. The -WOT variants are without the terminal barrier, for use with larger insulated spade terminal receptacles.

The series has two variants, the A (inlet) and B (outlet) types. Both are similar but have different keying to prevent mismating and are different colours. This means it is impossible to produce a short circuit with correctly wired connectors.

Type A is for power inlet, and is colour coded blue (equivalent in function to IEC320 cable female and panel male). Type B is for power outlet and is colour coded grey (equivalent in function to IEC320 panel female and cable male).

A number of accessories are available for use with the Powercon 20 Amp series:

42-025 In-line coupler to permit linking of cables, this has one type A and one type B connector
42-029 Red moulded PVC insulating cover for panel types
46-4022 Black moulded PVC insulating cover for panel types
43-047 Faston 4.8mm crimp spade terminals, for use with panel connectors
40-790 M3 tapped mounting frame for NAC3MP (fits behind connector to avoid using nuts)
40-793 Dummy plug, used to blank unused NAC3MP connectors
43-066 Dust protection cover for NAC3MPA and NAC3MPB, used when no connector is mated
40-77* Hinged cover for panel connectors, gives protection to IP54 when closed, available in several colours
40-76* Sealing gasket and colour coding for D-size panel connectors

Note:- Cable connectors will only mate with their corresponding panel connector type. e.g. Mains Input cable connectors will only mate with Mains Input panel connector (both blue). Mains Output cable connectors will only mate with Mains Output cable connectors (both grey).

  Description Price (£) Add to basket
NEUTRIK POWERCON NAC3FCA Mains input cable connector, 20 Amp   Stock code:
Please login for stock availability and lead times.
1+ £5.04
10+ £4.58
50+ £4.33
100+ £3.83
NEUTRIK POWERCON NAC3FCB Mains output cable connector, 20 Amp   Stock code: 42-022
Please login for stock availability and lead times.
1+ £5.04
10+ £4.58
50+ £4.33
100+ £3.83
NEUTRIK POWERCON NAC3MPA-1 Mains input panel connector, 20 Amp   Stock code:
Please login for stock availability and lead times.
1+ £2.53
10+ £2.30
50+ £2.17
100+ £1.92
NEUTRIK POWERCON NAC3MPB-1 Mains output panel connector, 20 Amp   Stock code:
Please login for stock availability and lead times.
1+ £2.53
10+ £2.30
50+ £2.17
100+ £1.92
NEUTRIK POWERCON NAC3MM-1 In-line cable coupler, 20 Amp   Stock code:
Please login for stock availability and lead times.
1+ £15.00
10+ £13.65
50+ £12.90
100+ £11.40
NEUTRIK SCDR-NAC Insulating cover for NAC3MP panel connectors, red Red Stock code:
Please login for stock availability and lead times.
1+ £1.08
10+ £0.99
50+ £0.93
100+ £0.82
NEUTRIK SCDR Insulating cover for D-series panel connectors, black Black Stock code:
Please login for stock availability and lead times.
1+ £1.42
10+ £1.29
50+ £1.22
100+ £1.08
NEUTRIK NLFASTON Crimp spade terminals 4.8mm (pack of 100)   Stock code:
Please login for stock availability and lead times.
1+ £11.45
5+ £10.77
per pack
NEUTRIK MFD M3 tapped mounting frame for D-series connectors   Stock code:
Please login for stock availability and lead times.
1+ £0.30
10+ £0.27
50+ £0.26
100+ £0.23
NEUTRIK NDL DUMMY PLUG, Speakon and Powercon   Stock code:
Please login for stock availability and lead times.
1+ £0.51
10+ £0.46
50+ £0.44
100+ £0.39
NEUTRIK SCL Dust cover for NL2M*, NL4M*, NLT4MP*, NAC3MPA, NAC3MPB   Stock code:
Please login for stock availability and lead times.
1+ £1.57
10+ £1.43
50+ £1.35
100+ £1.19
NEUTRIK SCDX-0 HINGED COVER For D-series connectors, black Black Stock code:
Please login for stock availability and lead times.
1+ £0.91
10+ £0.82
50+ £0.78
100+ £0.69
NEUTRIK SCDX-5 HINGED COVER For D-series connectors, green Green Stock code:
Please login for stock availability and lead times.
1+ £0.91
10+ £0.82
50+ £0.78
100+ £0.69
NEUTRIK SCDX-6 HINGED COVER For D-series connectors, blue Blue Stock code:
Please login for stock availability and lead times.
1+ £0.91
10+ £0.82
50+ £0.78
100+ £0.69
NEUTRIK SCDX-9 HINGED COVER For D-series connectors, white White Stock code:
Please login for stock availability and lead times.
1+ £0.91
10+ £0.82
50+ £0.78
100+ £0.69
NEUTRIK SCDP-0 SEALING GASKET For D-series connectors, black Black Stock code:
Please login for stock availability and lead times.
1+ £1.85
10+ £1.68
50+ £1.59
100+ £1.41
NEUTRIK SCDP-2 SEALING GASKET For D-series connectors, red Red Stock code:
Please login for stock availability and lead times.
1+ £1.85
10+ £1.68
50+ £1.59
100+ £1.41
NEUTRIK SCDP-4 SEALING GASKET For D-series connectors, yellow Yellow Stock code:
Please login for stock availability and lead times.
1+ £1.85
10+ £1.68
50+ £1.59
100+ £1.41
NEUTRIK SCDP-5 SEALING GASKET For D-series connectors, green Green Stock code:
Please login for stock availability and lead times.
1+ £1.85
10+ £1.68
50+ £1.59
100+ £1.41
NEUTRIK SCDP-6 SEALING GASKET For D-series connectors, blue Blue Stock code:
Please login for stock availability and lead times.
1+ £1.85
10+ £1.68
50+ £1.59
100+ £1.41
NEUTRIK SCDP-9 SEALING GASKET For D-series connectors, white White Stock code:
Please login for stock availability and lead times.
1+ £1.85
10+ £1.68
50+ £1.59
100+ £1.41
NEUTRIK POWERCON NAC3MPA-1-WOT Mains input panel connector, 20 Amp   Stock code:
Please login for stock availability and lead times.
1+ £2.53
10+ £2.30
50+ £2.17
100+ £1.92
NEUTRIK POWERCON NAC3MPB-1-WOT Mains output panel connector, 20 Amp   Stock code:
Please login for stock availability and lead times.
1+ £2.53
10+ £2.30
50+ £2.17
100+ £1.92
