Furman's range of power conditioners offer protection against abnormal power circuit conditions. The Classic series are the original Furman range but updated with features to suit the European market. The Merit series provide more basic protection, at a lower price. All units are housed in 1U rack-mounting enclosures.
PL-8C E Power Conditioner

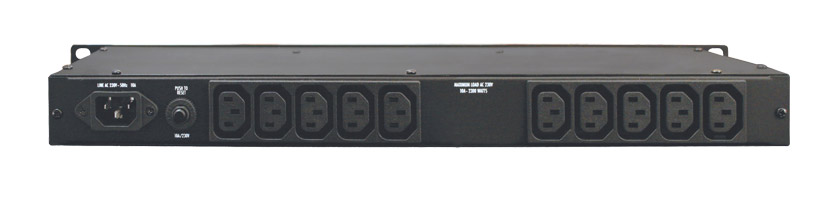

The Classis series 'PL' all share a common set of features. 'Series Multistage Protection' provides surge protection up to 6000V and 3000A pulses, far in excess of common spikes. 'Linear Filtering Technology' gives protection against RFI and other induced line-noise. 'Extreme Voltage Shutdown' detects creeping voltage rises that reach 15% over the norm and powers down the system. There are ten IEC 10amp rear outlets in two isolated banks of five plus a front panel IEC outlet. The front panel has a power on/off switch and two pop-out LED lamp units with dimmer control, for illumination of the equipment rack controls. On the rear panel there is a BNC connector to accept a Littlite gooseneck lamp.
10 amp total rated load, IEC 10 amp input connector.
PL-PLUS C E Power Conditioner - With bar-graph voltage indicator
As PL-8C but with an LED bar-graph voltage indicator.
PL-PRO DMC E Power Conditioner - With digital volt/ammeter
As PL-8C but 16 amp total current rated, with an IEC 16 amp input connector. A digital meter displays line voltage and true RMS current.
M-10x E Power Conditioner
The Merit series are low-cost AC power conditioners, offering spike and surge protection as well as RFI/EMI noise protection. There are ten IEC 10 amp rear outlets in two isolated banks of five plus a front panel IEC outlet and the unit is rated for a total load of 10 amps. The inlet is a 10 amp IEC male connector.
M-10Lx E Power Conditioner
As M-10x, plus two front panel pop-out LED lamp units with dimmer control, for illumination of the equipment rack controls.
PS-8RE III Power Conditioner/Sequencer
This unit has all the protection features of the Furman Classic series of power conditioners, and is capable of powering up equipment in a 3-step delayed sequence, reversed for power-down. The sequence can be initiated with either momentary or maintained switches, locally or remotely. A duplex outlet is provided for each delay step. One or more Furman PS-8R E III's may be installed in remote locations and operated via low-voltage wiring. Six sequenced rear-panel outlets (in 3 groups), two switched rear-panel outlets, and one front-panel switched outlet are provided. Power inlet is IEC 10A male, and total rated load is 10 amps.
