54-809

BEYERDYNAMIC SPARE HEADBAND CUSHION For DT100 headphone, DT108, DT109 headset

RoHS Compliant

Image may be provided for illustrative purposes only, please refer to the product description.

Product resources

Beyer DT100 (DT108,DT109) Spares Diagram
Exploded view of Beyer DT100 (DT108/DTH109) showing spare parts and Canford part numbers

BEYERDYNAMIC HEADPHONE AND HEADSET SPARE PARTS - DT100 series

Spares for DT100, DT108, DT109 (applicable to all models unless stated). Parts are available in grey, a few items are also available in black (if no stock code is shown in the ‘black’ column, that item is not available in black). Neutral or concealed parts are also shown in the grey column and should be used for both grey and black headphones/headsets. Some spares are available in sets to suit more common repair tasks. Where individual components from a set are illustrated, these spares are shown in the ‘in kit’ column. Beyerdynamic aims to provide more spares in the ‘sets’ form in the future, however stocks of individual spares will be available while stocks last.

Code	Code	Code	Description	Ref on
(Grey)	(Black)	(in kit)		drawings

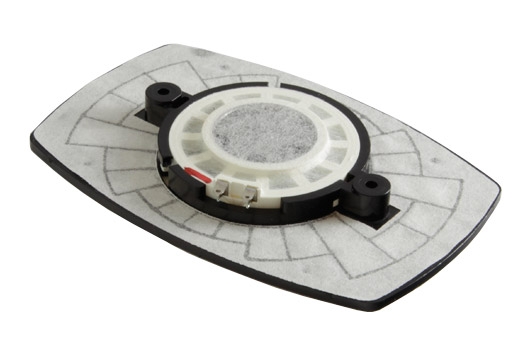

54-801	-	-	Ear loudspeaker, 400 ohms	1
54-852	-	-	Ear loudspeaker, 16 ohms	(1)
54-891	-	-	Ear loudspeaker, 50 ohms	(1)
54-802	54-781	-	Impedance disc, 400 ohms	(2)
54-854	-	-	Impedance disc, 2k ohms	(2)
-	54-803	-	Earpad (black vinyl)	3
-	54-822	-	Earpad (black velour)	3
54-804	-	-	Foam infill	4
54-805	-	-	Housing, cable side, DT100	5
54-806	-	-	Housing, non-cable side, DT100, DT109	6
54-859	-	-	6 Pin socket, DT100, DT108, DT109	7
54-808	54-785	-	Junction box cover ‘left’	8
54-860	-	-	Junction box cover ‘right’	8
54-809	-	54-862	Headband cushion	9
-	-	54-862	Headband, DT100, DT109	10
-	-	54-868	Headband, DT108	10
54-811	-	54-862	Headband cable	11
-	-	54-797	Plastic rivet	12
54-813	-	54-862	Cable guide, DT100/DT109 (both sides),
			DT108 (cable side only)	13
54-830		54-868	Cable guide, DT108 (dummy pad side only)	13
54-816	-	54-862	End stop	16
54-817	-	-	Label, ‘Beyerdynamic’	17
54-863	-	-	Label, DT100	17
54-864	-	-	Label, DT108	17
54-818	-	-	Adhesive pad	18
54-819	-	-	Screw DT-1	19
54-820	-	-	Screw DT-2	20
54-825	-	-	Screw DT-7	25
54-826	-	-	Dummy pad, DT108 (different shape to illustration)	26
-	-	54-797	Side shell, DT108	27
-	-	54-899	Cover plate, 200 ohms	31
54-832	54-787	-	Upper grille outer surround	32
54-833	-	-	Mic foam insert	33
54-834	54-788	-	Mic capsule, 200 ohms	34
54-867	-	-	Mic capsule, 600 ohms	(34)
-	-	54-899	Mic housing, lower	35
-	-	-	Insert, threaded taper nut	38
54-840	-	-	Mic cable standard	40
54-841	-	-	Mic cable DT109.11 type	41
-	-	54-799	Slotted disc cap	42
-	-	54-799	Knurled locking ring	43
-	-	54-799	Boom arm track disc	44
-	-	54-799	Quadrant disc	45
54-847	-	-	Pivot pin	47
-	-	54-796	Earshell pivot piece	48
-	-	54-796	Plastic pressure spring	50
-	-	54-796	Metal pressure spring	53
54-870	-	-	6 Pin plug (to fit item 7)	-
54-869	-	-	6 Pin plug retaining screw	-
54-871	-	-	K100.07 Cable, straight, DT100, 3.5mm/6.35mm
			adapter	-
54-872	-	-	WK100.07 Cable, coiled, DT100, 3.5mm/6.35mm
			adapter	-
54-876	-	-	WK100.00 Cable, coiled, DT100, unterminated	-
54-873	-	-	K109.00 3 metre cable, straight, DT108, DT109	-
54-875	-	-	K109.00 1.5 metre cable, straight, DT108, DT109	-
54-874	-	-	WK109.00 Cable, coiled, DT108, DT109	-

Spares Sets

The contents of various sets of commonly used spares (and their codes or drawing references) are shown below.

54-796	Beyerdynamic DT100 Series Spares Pivot Piece Set (955.535), includes: 1 x Metal Pressure Spring (53), 1 x Plastic Pressure Spring (50), 1 x Pivot Piece (48)
54-862	Beyerdynamic DT100/109 Spares Headband Set (929.488), includes: 1 x Metal Headband (54-810), 1 x Headband Cushion (54-809), 1 x Headband Cable (54-811), 2 x Cable Guide (54-813) and 2 x Headband End Stop (54-816).
54-868	Beyerdynamic DT108 Spares Headband Set (934.332), includes: 1 x Metal Headband (10), 1 x Dummy Ear Shell (27), 1 x Dummy Ear Pad (26), 1 x Cable Guide (54-813), 1 x Cable Guide (54-830) and 1 x Headband End Stop (54-816).
54-797	Beyerdynamic DT102/108 Spares Dummy Ear Set - Complete (926.356), includes: 1 x Dummy Ear Shell (27), 1 x Dummy Ear Pad (26), 1 x Rivet for Dummy Ear (12), 1 x Cable Guide, 1 x Beyerdynamic Logo, 1 x DT102 Logo
54-798	Beyerdynamic DT108/109 Spares Boom tracking Set, Black (900.257), includes: 1 x Boom Tracking Disk (44), 1 x Knurled Locking Ring (43), 1 x Boom Fixing Screw, 1 x Slotted Disk cap (42), 1 x Quadrant Disc (45), 2 x Screws
54-799	Beyerdynamic DT108/109 Spares Boom tracking Set, Grey (900.249), includes: 1 x Boom Tracking Disk (44), 1 x Knurled Locking Ring (43), 1 x Boom Fixing Screw, 1 x Slotted Disk cap(42), 1 x Quadrant Disc (45), 2 x Screws
54-898	Beyerdynamic DT108/109 Spares Microphone Housing Set, Black (946.748), includes: 1 x Cover Plate (31), 1 x Mic Housing (35), 1 x Screw
54-899	Beyerdynamic DT108/109 Spares Microphone Housing Set, Grey (926.756), includes: 1 x Cover Plate (31), 1 x Mic Housing (35), 1 x Screw
