60-46349 BELDEN 46349 CABLE Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.80 1.44 1.39 1.33 1.22
BELDEN 46349 CABLE Black

Description

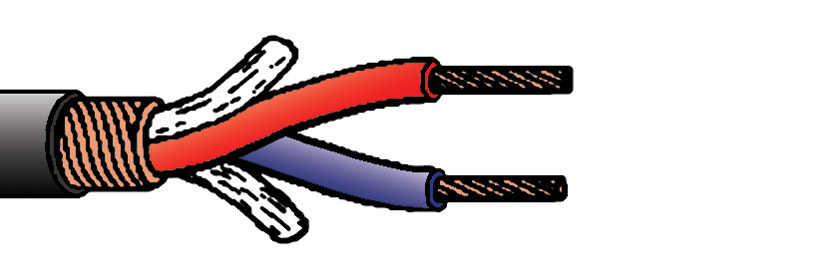

BELDEN 46349 - HELICAL SCREENED STRANDED CONDUCTOR TWIN CABLE

Flexible microphone cable.

Technical Specification:

Conductors:32/0.10mm (32/38AWG) (0.25mm sq.) (24AWG) plain copper
Insulation:Polyethylene, 1.45mm OD, red, blue
Construction:Two cores twisted together with cotton yarn fillers
Screen:0.122mm helically wound plain copper wire, 90% optical coverage
Overall jacket:Soft semi-matt PVC, 6.1mm OD, black, red, green, yellow (blue or grey to special order)
Capacitance:60pF/m core to core, 110pF/m core to core+screen
Weight:4.9kg/100m
Reel length:100m
Cut lengths:46349 Black is available in any multiple of 1 metre
