31-320 CANFORD KSM CABLE 20 pair (BBC PSN40/2)

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 3.45 2.76 2.66 2.56 2.35

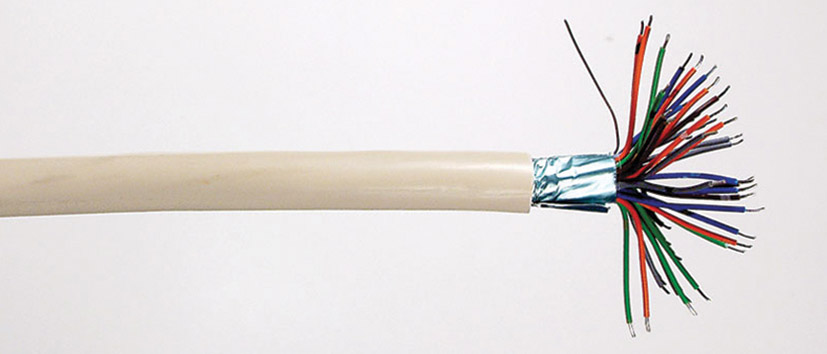

CANFORD KSM CABLE 20 pair (BBC PSN40/2)

Image may be provided for illustrative purposes only, please consult the product description for exact details.

CANFORD KSM CABLE 20 pair (BBC PSN40/2)CANFORD KSM CABLE 20 pair (BBC PSN40/2)

Description

Product resources

KSM SERIES - OVERALL FOIL SCREENED SOLID CONDUCTOR MULTIPAIR CABLE (BBC PSN types)

These cables, to a BBC specification, have single solid conductors, twisted in pairs and overall foil screens with drain wire. They are suitable for permanent installations where screens are terminated on a bus arrangement, such as jackfields and IDC type blocks. They have a relatively low impedance (they were designed before digital audio was invented) and are not suitable for digital audio circuits.

Technical Specification:

BBC specification:PSN10/3M (KSM5), PSN20/4M (KSM10), PSN32/1M (KSM16), PSN40/2M (KSM20), PSN50/3M (KSM25)
Construction:Twisted to form pairs, than laid-up with overall Melinex tape
Voltage rating:750V dc
Conductors:1/0.5mm (0.2mm²) tinned copper wire
Current rating:1A
Insulation:PVC. For colours see technical data section
Screen:Aluminium or aluminium/polyester tape
Drain wire:1/0.5, (0.22mm²) tinned copper
Overall jacket:PVC, cream
Overall diameter:6.3mm (KSM5), 7.6mm (KSM10), 8.4mm (KSM16), 10.2mm (KSM20), 10.8mm (KSM25)
Conductor resistance:98 ohms/km
Weight:4.7kg/100m (KSM5), 8.4kg/100m (KSM10), 11.2kg/100m (BSM16), 15.1kg/100m (KSM20), 17.0kg/100m (KSM25)
Reel length:100m, 500m
Cut lengths:Available in any multiple of 1 metre
