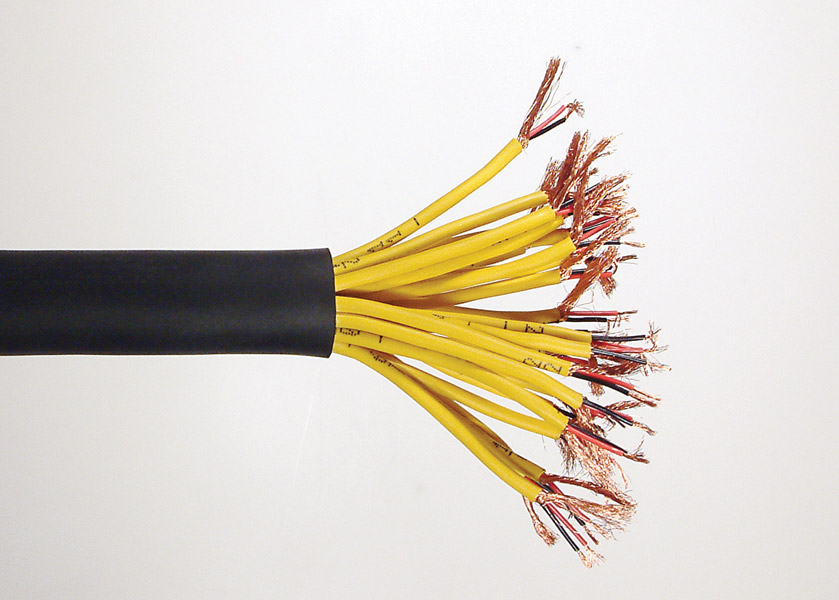

HSJ SERIES - DOUBLE HELICAL SCREENED STRANDED CONDUCTOR INDIVIDUALLY JACKETED MULTIPAIR CABLE
The softest, “sexiest”, most flexible multipair in the world? Probably! Canford’s ultimate development, using the latest composite plastics technology. A multipair cable for users requiring an individually jacketed pair construction. Two sizes, HSJ8 and HSJ12, are designed specifically to fit into the metal EDAC multiway connector covers, as stocked by Canford Audio (HSJ 8 pair suits the 20 way cover, HSJ 12 pair suits the 38 way cover).
Technical Specification:
|
Construction: | Twin conductors of plain copper wire, PVC insulated, twisted together, 2 helically wound plain copper wire screens opposite lays (“Reussen” screen), PVC jacketed. A number of these cores numbered and laid up together, sheathed overall soft semi-matt extra-flexible PVC |
|
Pair conductors: | 25/0.1 (0.19mm²) plain copper wire |
|
Pair insulation: | PVC Red, Black |
|
Screen 1: | 48/0.1mm plain copper wire, wound helically left hand lay |
|
Screen 2: | 48/0.1mm plain copper wire, wound helically right hand lay |
|
Pair jacket: | PVC, Yellow. OD 2.8mm |
|
Overall lay-up: | Each individual jacket sequentially numbered along its length |
|
Outer sheath: | Soft semi-matt PVC, Black |
|
Overall diameter: | HSJ4 8.5mm, HSJ8 11.5mm, HSJ12 13.7mm, HSJ16 15.5mm, HSJ24 19.5mm |
|
Capacitance: | 150pF/metre core to core 280pF/metre core to core +screen |
|
Maximum conductor resistance: | 92 ohms/km |
|
Weight (kg/100m): | HSJ4 9.5kg, HSJ8 18.9kg, HSJ12 25.7kg, HSJ16 33.4kg, HSJ24 50.1kg |
|
Reel length: | 500 metres |
|
Cut lengths: | Available in any multiple of 1 metre |
