FSJ SERIES - FOIL SCREENED STRANDED CONDUCTOR INDIVIDUALLY JACKETED MULTIPAIR CABLE
This new 2010 version of the classic Canford FSJ cable is designed to be suitable for both digital and analogue audio signals, the 'universal' solution for both installed and deployable applications. Wire insulation is polypropylene, which shrinks back minimally during soldering (considerably less than PVC or polyethylene). An impedance of 100 ohms has been proven to be suitable for AES/EBU digital audio signals as well as analogue microphone and line level signals.

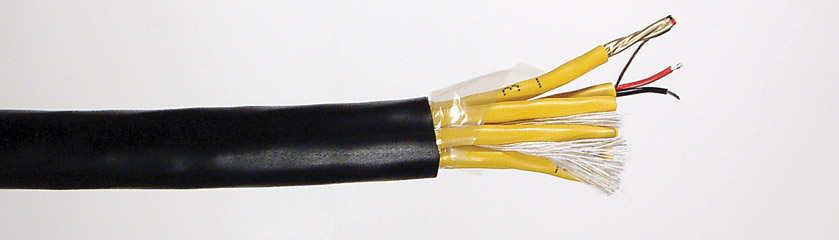

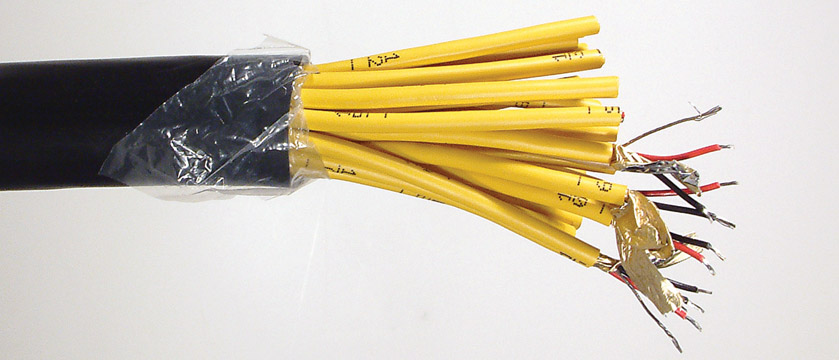

It is an individually jacketed multipair cable now based on Canford's FST-F 'Flexible Foil Screened Twin'. Previously it was based on the standard FST, but in the new 2010 version, FST-F is used as a basis in order to offer enhanced flexibility. Construction is a number of these cables, printed with a core identification, and sheathed overall in soft PVC. The individual cores are jacketed ready for termination directly into connectors etc., and the inner jacket is bonded to the screening foil so strips away in a single action.
Technical Specification:
|
Pair Insulation: | Foamed polypropylene, OD 1.46mm, red, black |
|
Screen: | Aluminium/Polyester tape with 7/0.20mm, tinned copper drain wire |
|
Pair Jacket: | Soft PVC OD 4.0mm, Yellow |
|
Outer sheath: | Soft PVC, black, printed with metre markings |
|
Overall diameter: | 4 pair 11.3mm, 8 pair 15.1mm, 12 pair 17.7mm, 16 pair 19.7mm, 24 pair 25.1mm |
|
Impedance: | 100 ohms |
|
Capacitance: | 100pF/metre core to core, 198pF/metre core to core + screen |
|
Weight (kg/100 metres): | 4 pair 13.4kg, 8 pair 22.5kg, 12 pair 31.2kg, 16 pair 40.4kg, 24 pair 61.8 kg |
