31-903 CANFORD RS422 CABLE 3 pair

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 1.43 1.15 1.12 1.09 1.05

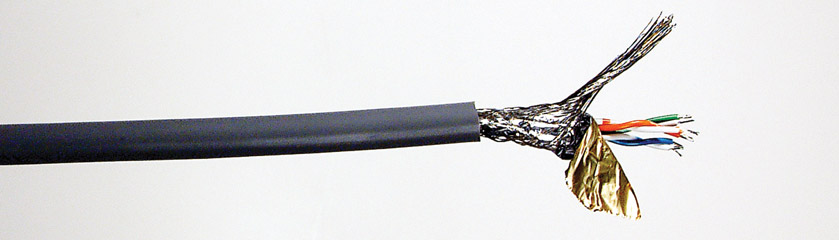

CANFORD RS422 CABLE 3 pair

Image may be provided for illustrative purposes only, please consult the product description for exact details.

CANFORD RS422 CABLE 3 pairCANFORD RS422 CABLE 3 pair

Description

Product resources

RS422 - DATA CABLE

2 and 3 pair overall screened cables specifically designed for RS422 data. In applications such as equipment and instrumentation control, DMX, data processing and information systems.

Technical Specification:

Conductors:7/0.2mm tinned copper wire
Insulation:Solid polyethylene, according to Belden colour code (see Technical Data at back of catalogue)
Lay-up:Two pairs of insulated conductors twisted together, laid up with 7/0.2mm tinned copper drain wire, overall aluminium/polyester foil tape screen (aluminium side out) plus 16/7/0.122mm (2 pair) or 16/4/0.15mm (3 pair) tinned copper braid, 65% coverage
Overall jacket:PVC, chrome grey, OD 7.6mm (2-pair), 7.75mm (3-pair)
Impedance:100 ohms
Conductor resistance:7.8 ohms/100m
Capacitance:50pF/m core to core
89pF/m core to core + screen
Velocity ratio:0.66
Weight:6.5kg/100m (2-pair), 6.70kg (3-pair)
Reel lengths:500 metres
Cut length:Available in any multiple of 1 metre
