Description

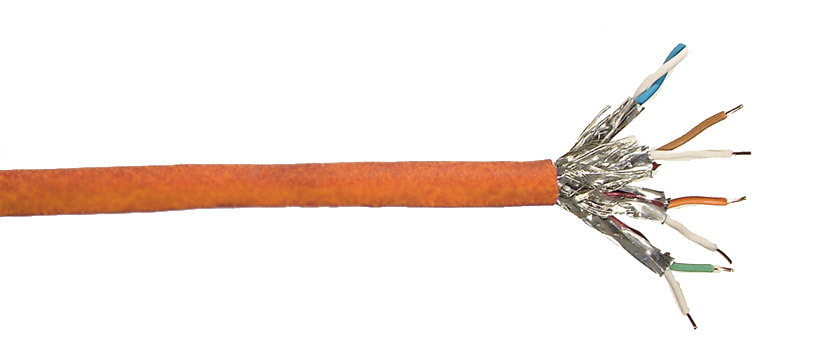

DRAKA CATEGORY 7 - SOLID CONDUCTOR MULTIPAIR DATA CABLES Low Fire Hazard
The computer industry 100 ohm Category 7 standard provides performance up to 600MHz, and is suitable for Gigabit Ethernet and other high speed applications. Category 7 defines more stringent specifications than those applicable to Category 6 at higher frequencies.

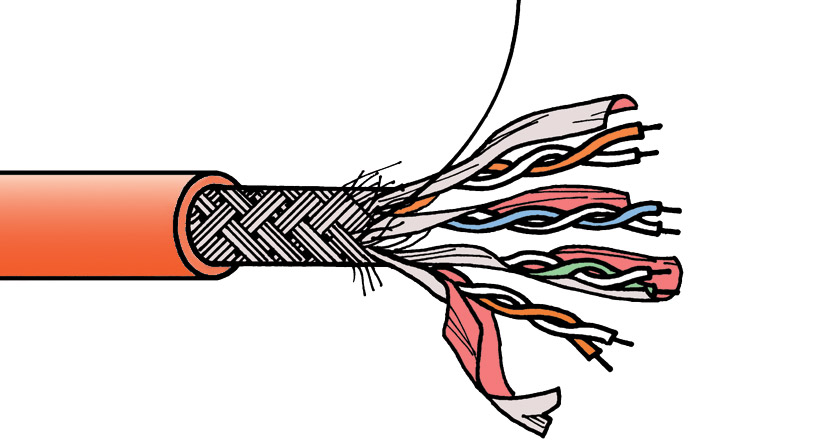

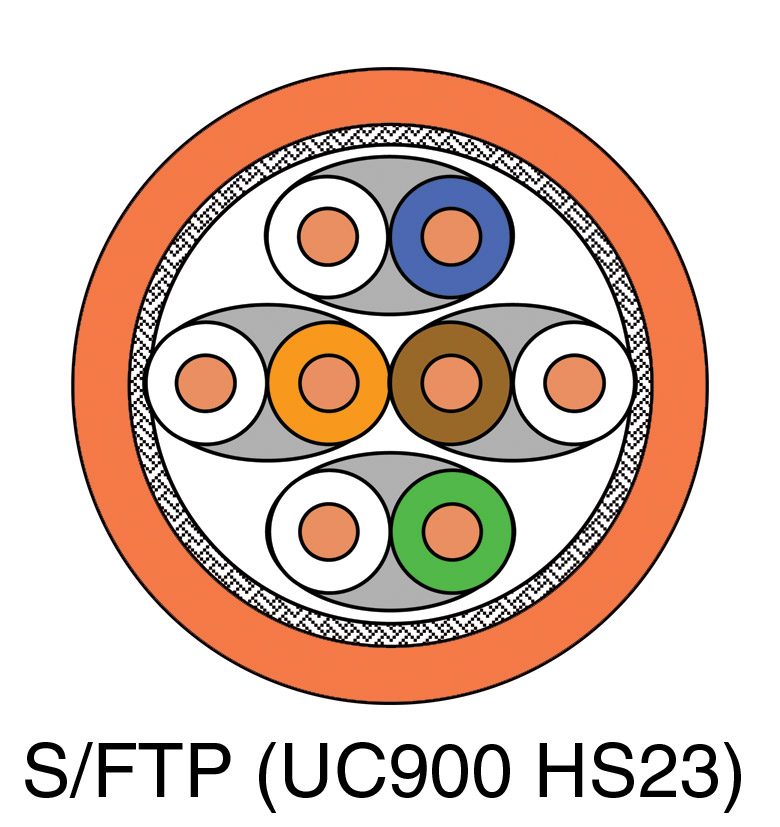

This S/FTP design has individual foil screens for all four pairs, plus an overall braid screen and is only available with a Low Fire Hazard ('LSOH') jacket.
Manufactured by Draka Comteq Ltd.
Technical Specification:
|
Conductors: | 1/0.56mm (23AWG) plain copper |
|
Insulation: | Foamed polyethylene |
|
Lay-up: | Two insulated conductors twisted together, pairs twisted together. |
|
Pair screens: | Aluminium/polyester tape (aluminium side in) |
|
Drain wire: | None |
|
Overall jacket: | LFH material, O.D. 7.5mm, orange |
|
Minimum bending radius: | 60mm |
|
Impedance: | 100 +/- 15 ohms |
|
Attenuation: | 17.4dB/100m (100MHz) |
|
| 25.0dB/100m (200MHz) |
|
| 28.1dB/100m (250MHz) |
|
| 44.8dB/100m (600MHz) |
|
Near end crosstalk: | 100dB (100MHz) |
|
| 92dB (200MHz) |
|
| 90dB (250MHz) |
|
| 85dB (600MHz) |
|
Weight: | 7.5kg/100m |
|
Reel length: | 500 metre reels |
|
Cut lengths: | Available in any multiple of 1 metre |
