Description
EMO POWER DISTRIBUTION SYSTEM

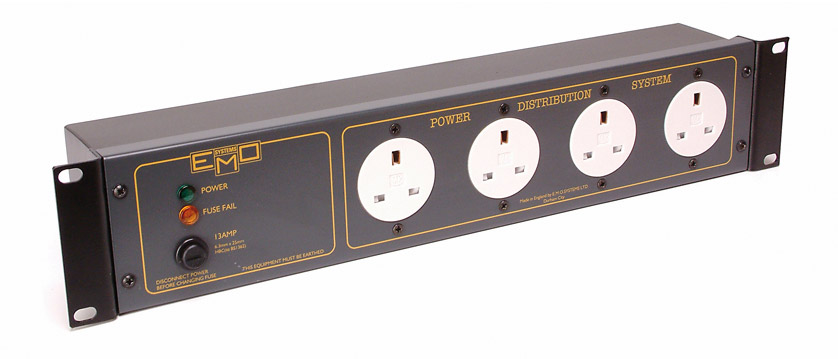

A range of power distribution panels for 19” rack mounting. Suitable for both fixed and mobile installations. The system allows all rack mounted equipment to be fitted with a standard BS1363 13A, IEC 10 amp or Schuko connector, so that installation and removal of equipment is easy and safe. The availability of front mounted sockets allows standard connectors also to be used on portable external equipment. In installations where a large number of outlets are required, the initial unit can supply power to slave units through the outlets on its rear panel. If a detachable power input lead is required, the C600 series panels offer this facility via BS EN 60309-2:1922 connectors (formerly known as BS4343, or IEC309 connectors!). IEC jumper cables also available – see index.
All models have two neon indicators, the first wired to show the presence of supply input and the second to show failure status of the front-panel 13A fuse, located after the supply input.
Technical Specification:
|
Socket outlets: | Shuttered 13A 3-pin to BS1363, Schuko 16A to CEE7/7 or IEC 6A to CEE22. |
|
Power input: | 2m 1.25mm² 3 core flex. |
|
Total load: | 13A (all versions) |
|
Dimensions: | 483mm (19”) × 89mm (2u) × 85mm. |
|
Weight: | 2kg. |
|
Type | Power Input | Front | Back | Outlet | Back outlets |
|---|
|
| | Outlets | Outlets | connectors | fused individually |
|---|
| |
|

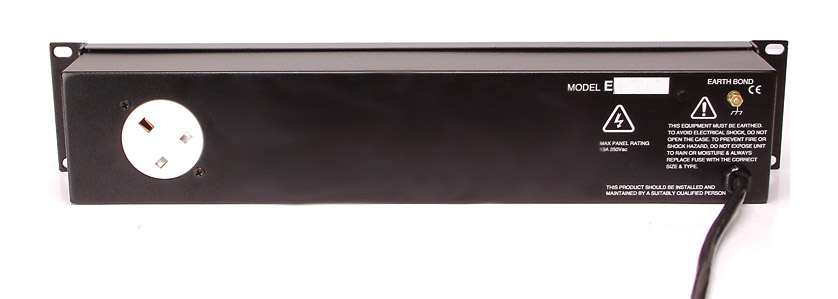

E625 | Fixed | 4 | 1 | UK 13A | No |
|
E625S | Fixed | 4 | 1 | Schuko | No |
|

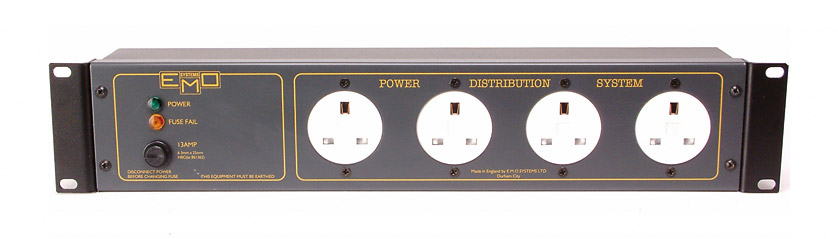

E630 | Fixed | 4 | 4 | UK 13A | No |
|
E630S | Fixed | 4 | 4 | Schuko | No |
|

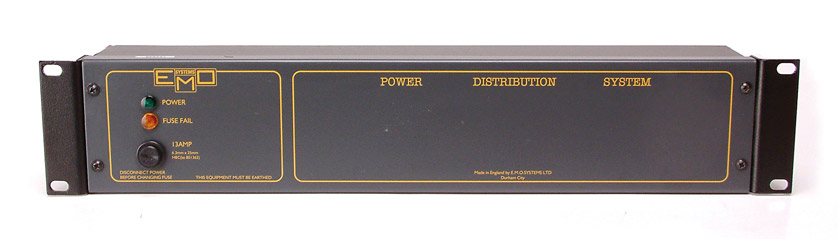

E640 | Fixed | None | 4 | UK 13A | No |
|
E640S | Fixed | None | 4 | Schuko | No |
|
E645 | Fixed | 1 | 4 | UK 13A | No |
|
E645S | Fixed | 1 | 4 | Schuko | No |
|
E650 | Fixed | None | 12 | IEC 6A | No |
|
E655 | Fixed | 1 | 12 | IEC 6A | No |
|
E651 | Fixed | None | 12 | IEC 6A | Yes |
|
E656 | Fixed | 1 | 12 | IEC 6A | Yes |
|
Note: | 3 pin 13 amp connectors are approved for use in the UK and certain non-European countries only. |
