30-311 CANFORD HSB CABLE 1 pair, Brown (BBC PSF2/9B)

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 2.29 1.84 1.77 1.70 1.56
CANFORD HSB CABLE 1 pair, Brown (BBC PSF2/9B)

Description

HSB - DOUBLE HELICAL SCREENED STRANDED CONDUCTOR TWIN CABLE (BBC PSF2/9)

A high performance twin screened microphone cable to a BBC specification. Fine stranded conductors and double screen, (also known as “Reussen” screen) terylene thread and cotton fillers offer extremely good handling and performance for studio and OB applications.

Technical Specification:

BBC specification:PSF2/9MB

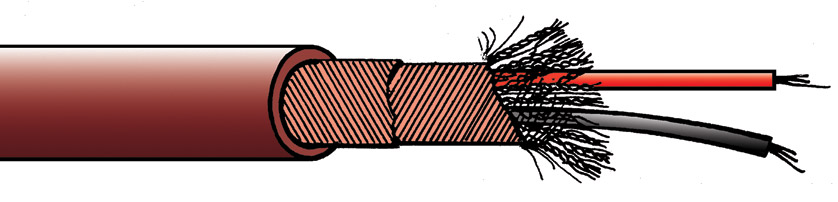

Construction:Cores laid up with terylene cords (combined breaking strain 250N) made round and filled with soft white cotton. Overall reverse lapped with soft white cotton. Screened by two close lapped screens (>65°) in opposite directions
Voltage rating:750V DC
Conductors:55/0.1mm (0.43mm²)
Current rating:2.5A
Insulation:PVC red and black
Screen 1:0.1mm close lapped LH lay
Screen 2:0.1mm close lapped RH lay
Overall jacket:Super flexible PVC, 6.6mm OD, brown
Conductor resistance:45 ohms/km
Capacitance (nom):210pF/m
Weight:6.4kg/100m
Reel length:100m, 500m
Cut lengths:Available in any multiple of 1 metre
