SQM SERIES - MULTIPLE STARQUAD

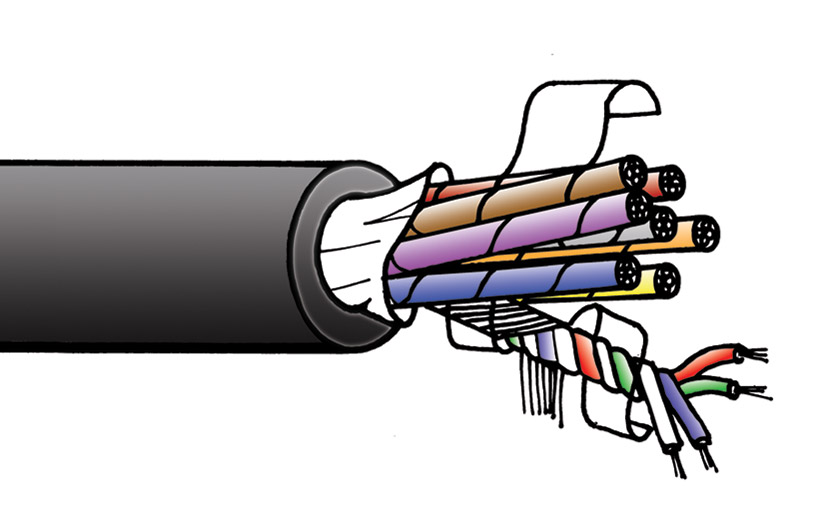

Flexible ‘starquad’ multicore cable based on a BBC specification. Suitable for microphone multicores in noisy environments, especially near thyristor controlled lighting. This is an updated version of the original BBC PIF28/1 specification, offering 8 quads, plus a special extra-flexible PVC/elastomer jacket. There is a UK broadcast industry wiring convention for termination onto the 26 pin bayonet lock connector (the BBC convention), details of which are available on request.
Technical Specification:
|
| |
|
BBC Specification: | PIF28/1M (core construction) |
|
Voltage Rating | |
|
1kV DC Conductors: | 14/0.12mm (0.158 mm. sq.) tinned copper wire |
|
Insulation: | PVC red, green, blue, white |
|
Screen: | 95% cover 0.15mm close lap |
|
Individual quad markers: | 1-brown, 2-red, 3-orange, 4-yellow, 5-green, 6-blue, 7-violet, 8-grey |
|
Individual sleeve: | Double polyester tape, each lapped with 30% overlap |
|
Overall jacket: | Soft semi-matt PVC, 16.7mm OD, black |
|
Conductor resistance: | 118 ohms/km |
|
Capacitance (nom): | 140pF/m |
|
Weight: | 31.8kg/100m |
|
Reel length: | 100m, 500m |
|
Cut lengths: | Available in any multiple of 1 metre |
