60-1192A BELDEN 1192A CABLE Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 4.63 3.70 3.57 3.43 3.15
BELDEN 1192A CABLE Black

Description

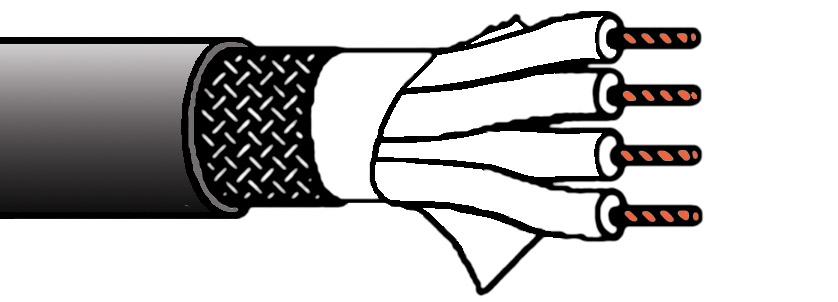

BELDEN 1192A - STARQUAD MICROPHONE CABLE

Braid screened balanced star quad cable for best noise rejection in electrically hostile environments.

Technical Specification:

Conductors:42/0.079mm (42/40AWG) (0.205mm²) (24AWG) plain copper
Insulation:Polyethylene, blue, white, blue with white stripe, white with blue stripe
Construction:Four cores twisted tightly together with cotton fillers
Screen:Tinned copper braid, 95% optical coverage
Jacket:PVC, 6.22mm OD, black (red, blue, green, yellow and grey available to special order)
Impedance:40 ohms
Capacitance:128pF/m core to core, 188pF/m core to opposite quad core
Weight:4.91kg/100m
Reel length:153m
Cut lengths:Available in any multiple of 1 metre.
USAGE NOTE:White + white with blue stripe for A leg
Blue + blue with white stripe for B leg
