60-8412 BELDEN 8412 CABLE Black

per metre (ex. VAT) 1+ 100+ 500+ 1000+ 5000+
Price £ 5.13 4.10 3.95 3.80 3.49
BELDEN 8412 CABLE Black

Description

BELDEN 8412 - HEAVY DUTY BRAID SCREENED STRANDED CONDUCTOR TWIN CABLE Rubber jacket

The classic! If there ever was an audio industry iconic mic cable, this is it. Virtually unchanged in over 70 years, this is possibly the only rubber insulated and jacketed microphone cable still manufactured. Legendary rugged reliability.

Technical Specification:

Conductors:26/0.16mm (26/34AWG) (0.52mm sq.) (20AWG) tinned copper
Insulation:EPDM (ethylene propylene monomer rubber), 2.11mm OD, white, black

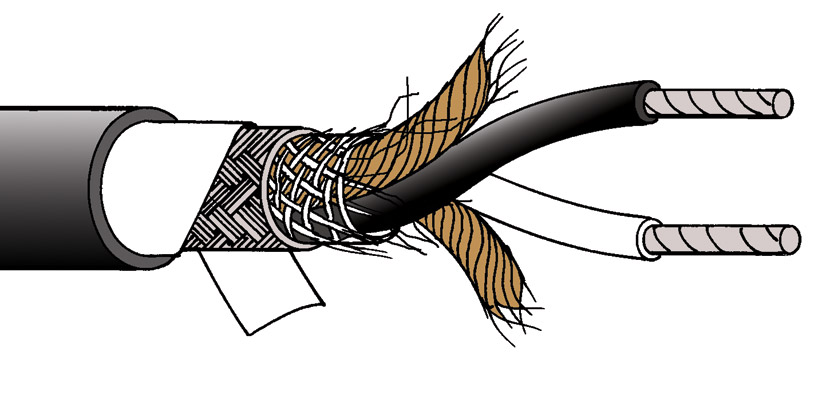

Construction:Two cores twisted together with cotton yarn fillers, overlaid with rayon braid
Screen:Braided tinned copper wire, 85% optical coverage
Over screen:Cotton wrap
Overall jacket:EPDM (ethylene propylene monomer rubber), 6.65mm OD, black (red, blue and yellow to special order)
Capacitance:98pF/m core to core, 180pF/m core to core+screen
Weight:6.37kg/100m
Reel length:153m
Cut lengths:Available in any multiple of 1 metre.
