Canford

www.canford.co.uk

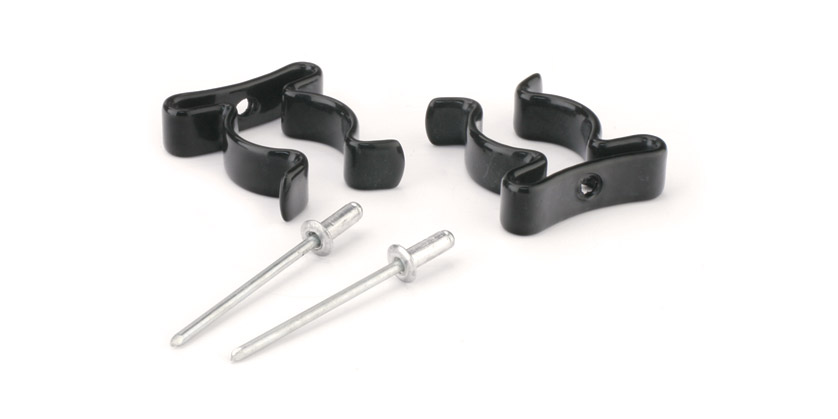

39-029 CANFORD CABLE DRUM CD1 Spring CANFORD CABLE clip (set of 2)

each (ex. VAT) 1+ 10+
Price £ 0.68 0.66
CANFORD CABLE DRUM CD1 Spring CANFORD CABLE clip (set of 2)

Description

CANFORD CABLE DRUMS - Steel drum, fully-enclosed steel frame

Steel cable drums with black nylon dipped finish. Spare drums and spare accessories are also stocked. Units may be stacked up to 3 high to save floor space.

CD1

Handle is integral with the drum, and the frame is fitted with an unbreakable, spring loaded, vibration-resistant drum-retaining latch. Spring clips for connector retention are available as an optional extra, supplied complete with fixing hardware.

CD2, 3 series

Larger frame series, with a variety of drum capacities. The winding handle is a separate unit which rotates through 180 degrees for compact storage. A chained drum-locating pin prevents drum rotation during transit.

Technical Specification:

Dimensions:

ModelFlangeHub diamDrum widthWeight
CD1320mm90mm125mm6.40kg
CD2450mm230mm150mm11.40kg
CD3450mm230mm300mm12.80kg
CD3.45450mm230mm450mm15.20kg
CD3.6450mm230mm600mm16.60kg

Capacities

Capacities6.5mm cable12.5mm cable15.9mm cable
(tightpack)(HST,SDV-L)(FSM12, PSF1/9)(FSJ8, FSM24)
CD1192m51mnot recommended
CD2369m91m49m
CD3755m190m104m
CD3.451141m290m165m
CD3.61527m389m220m
