Sonifex

28-311

SONIFEX TELEPHONE BALANCE UNIT HY-03

Sonifex HY-03

SONIFEX TELEPHONE BALANCE UNIT HY-03
SONIFEX TELEPHONE BALANCE UNIT HY-03SONIFEX TELEPHONE BALANCE UNIT HY-03

SONIFEX TELEPHONE BALANCE UNITS

HY-03

The HY-03 is an electronic telephone hybrid unit (“4 wire to 2 wire converter”) which automatically compensates for variable line resistance and reactance whilst the line is connected. All units in the range are fully approved by BABT with “green dot” approval S/3619/23/L/501792 and are compliant with European PTT specifications. The analogue HY-03 telephone hybrid is the replacement for the HY-02, which for many years has set the standard as an excellent value, high quality telephone hybrid. As well as other extra features the HY-03 also includes a ringing detector as standard.

The telephone line is isolated from the equipment by a disconnection barrier and an approved line transformer, and may be switched between a local handset and the equipment by means of an illuminated “LINE CONNECT” switch which also serves as an “ON” and “RING” indicator. When switched to “LINE CONNECT” the equipment holds the telephone call. This switch function can be operated remotely.

The HY-03 may be used with 0dBu clean feed input signals, or alternatively, direct connection of a microphone input, which is adjustable between 74db to 40dB on a rear preset adjustment, may be used. The balanced clean feed input has a bandpass filter, and is limited to give peak levels of +4dBu at the telephone line. The output circuitry processes the telephone signal to give 0dBu output from the equipment, and then balances or rejects the clean feed signal automatically under varying line conditions. The rejection is constantly reviewed during the presence of clean feed signals to optimise the equipment for prevailing line conditions. The telephone signal is processed through a bandpass filter and noise gate which downward expands during no signal conditions to eliminate line cross talk and associated noise.

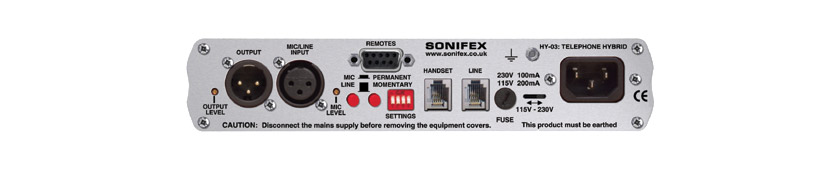

The output of the HY-03 is an XLR-3 pin male connector with a nominal level of 0dBu balanced low impedance. The level is adjustable between +8db to -14dB on a rear preset adjustment. The output can also be set as a mix of the caller and mic/line input signals to allow a recording of both sides of a telephone conversation.

The included ringing detector allows the HY-03 to auto answer incoming calls. It can be pre-set to answer incoming calls on either the first ringing cadence through to the sixth ringing cadence. The “LINE CONNECT” switch is illuminated each time a ringing cadence is present, and an opto coupler presents an active open collector output suitable for driving a white light indicator on the remote connection. The unit is fitted with K-break disconnection (UK use) as standard but an optional HY-03DTD board is available to equip the HY-03 for disconnection upon detecting dial-tone.

The HY-03 unit is also available as a single 1U rack-mounted version or a twin 1U rack-mounted version.

Versions available:

HY-03 Free-standing balance unit
HY-03SRack-mount single balance unit
HY-03TRack-mount twin balance unit

Accessories available:

HY-03DTDDial detect add-on board
HY-03SCONFront panel conversion kit, HY-03 to HY-03S
HY-03TCONFront panel conversion kit, HY-03 or HY-03S to HY-03T
HY-03CONFront panel conversion kit, HY-03S to HY-03

Technical Specification:

Clean feed input line: 10k ohms balanced 0dB
Clean feed input microphone:200 ohm balanced from 74dB (adjustable gain)
Clean feed limiting level:+4dBu
Bandwidth to telephone line:250Hz-4kHz, -3dB ref.1kHz
Telephone line impedance :nominally 600 ohm
Telephone line impedance range:300ohms to 1.5kohms
Output:Balanced floating 0dBu 50 ohms
Rejection ratio:Typically 28dB
Connectors:Input mic/line - XLR 3 pin female
Output line - XLR 3 pin male
Telephone line - RJ11 6/4 socket, leads supplied, RJ11 plug to RJ11 plug and RJ11 plug to BT6/502 plug
Telephone instrument - RJ11 6/4 socket, adaptor supplied, BT605A socket to RJ11 plug
Remotes - 9 pin d-sub miniature
Power source:230V AC 50Hz or 115V AC 60Hz, 6W, IEC Inlet, lead supplied, UK13A
Dimensions:HY-03 - 218mm (w) x 44.45mm 1U (h) x 175mm (d)
HY-03S or T - 483mm (w) x 44.45mm 1U (h) x 175mm (d)

Ordering note:

Standard models do not operate with the Broadcast Bionics PhoneBox system, a special version is required. Please contact Technical Support for details.

  Description Price (£) Add to basket
SONIFEX TELEPHONE BALANCE UNIT HY-03 28-311  SONIFEX TELEPHONE BALANCE UNIT HY-03
Sourced £565.00
1+ £619.00
SONIFEX TELEPHONE BALANCE UNIT HY-03S
Sourced £540.00
1+ £629.00
SONIFEX TELEPHONE BALANCE UNIT HY-03T

Special order product. Order cancellations may incur charges.

Sourced £1105.00
1+ £1190.00
SONIFEX TELEPHONE BALANCE UNIT HY-03DTD Dial tone detect

Special order product. Order cancellations may incur charges.

Sourced £74.00
1+ £89.95
SONIFEX TELEPHONE BALANCE UNIT HY-03SCON Front panel conversion kit

Special order product. Order cancellations may incur charges.

£34.95
SONIFEX TELEPHONE BALANCE UNIT HY-03TCON Front panel converstion kit

Special order product. Order cancellations may incur charges.

£40.95
SONIFEX TELEPHONE BALANCE UNIT HY-03CON Front panel conversion kit

Special order product. Order cancellations may incur charges.

£30.95
