KST-M - MINIATURE FOIL SCREENED SOLID CONDUCTOR TWIN CABLE
This D'n'A series (Digital and Analogue) cable is designed to be suitable for both digital and analogue audio signals, with an impedance of 100 ohms which has been proven to be suitable for AES/EBU digital audio as well as analogue microphone and line level signals. Wire insulation is polypropylene, which shrinks back minimally during soldering (considerably less than PVC or polyethylene).

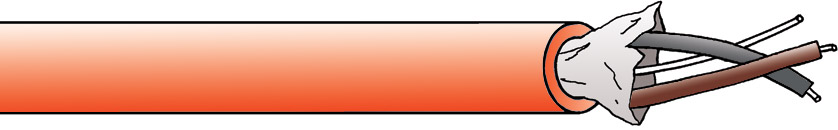

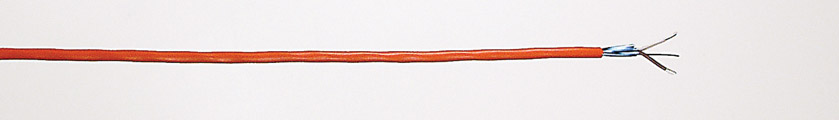

This is a miniature solid-conductor twin screened cable, specifically for use with Krone 10 pair and similar IDC blocks. Cores and drain wire are all solid conductor, 0.37mm diameter, however this differs from KST cable in that, to keep the overall diameter to an absolute minimum, the drain wire does not have a conductive plastic jacket. The foil screen is bonded to the outer PVC jacket, as with KST and FST.
Although this cable is designed for IDC applications, there will be occasions where some soldered terminations are required.
Technical Specification:
| Conductors: |
1/0.37mm (0.107mm²) tinned copper wire |
| Insulation: |
1.23mm ±0.03mm Foamed polypropylene, brown, white |
| Drain: |
1/0.37mm (0.107mm²) tinned copper wire |
| Screen: |
Bondable AL/Polyester tape |
| Jacket: |
PVC, OD 3.3mm ±0.10mm, orange, printed with metre markings |
| Impedance: |
100 ohms |
| Capacitance: |
41pF/metre core to core, |
|
102pF/metre core to core +screen |
| Max conductor resistance: |
170 ohms/km |
| Reel lengths: |
500 metres |
| Weight: |
3.5kg/500m drum |
| Cut lengths: |
Available in any multiple of 1 metre, minimum 10 metres |
